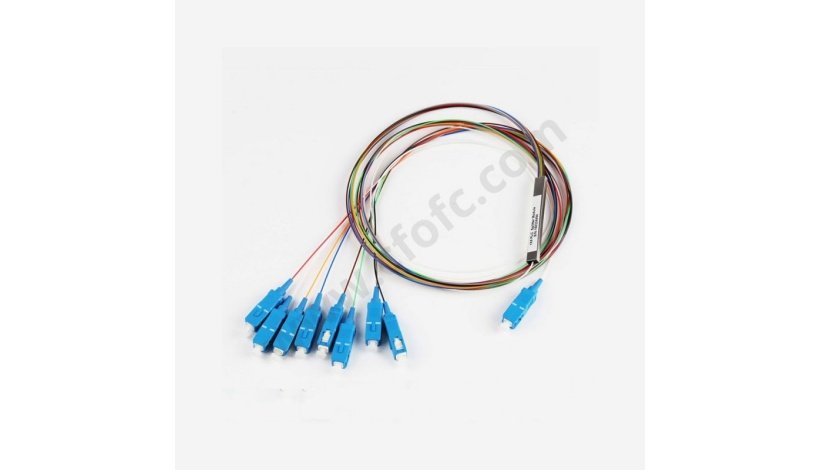

1x8 SC/UPC Mini Steel Tube PLC Splitter
PLC splitter is an optical power management device. Made with silica waveguide tech, it meets GR standards. Small, reliable, wide wavelength range and good uniformity. Widely used in PON networks for signal splitting. Efficiently manages optical power.
Features
High reliability
SC/UPC Connectors
Low Insertion loss and Low PDL
Bend Insensitive Fiber
Uniform power splitting
Nano-zirconia Ceramic Ferrules
Excellent environmental stability
Compact size and various package
Applications
FTTx Systems
Digital, hybrid and AM-Video systems
LAN,WAN and Metro Networks
CATV systems
Other applictaions in fiber optic systems
Products Details
- Technical Parameters
- Order Information
| Package Style | Mini Module | Configuration Type | 1×8 |
| Fiber Grade | G.657A1 | Fiber Mode | Single mode |
| Fiber jacket | LSZH sheath,OFNP,OFNR | Color | Blue |
| Connector Type | SC/UPC | Split Ratio | Symmetrical |
| Input/Output Fiber Diameter | 0.9mm/2.0mm/3.0mm | Input/Output Fiber Length | 1.5m/Customized |
| Insertion Loss | ≤10.5dB | Return Loss | ≥55dB |
| Loss Uniformity | ≤0.8dB | Directivity | ≥55dB |
| Polarization Dependent Loss | ≤0.2dB | Temperature Dependent Loss | ≤0.5dB |
| Wavelength Dependent Loss | ≤0.3dB | Operating Bandwidth | 1260-1650nm |
| Steel Tube Dimensions(H x W x D) | 0.16″×2.36″x0.28″(4x60x7mm) | Temperature | Operating -40 to 85℃(-40 to 185°F) Storage-40 to 85℃(-40 to 185°F) |
| Certification | IS09001 |
| Color | Green / blue / Customized |
| Fiber Cable Jacket | LSZH / OFNP / OFNR…. |
| Temperature | -40 to 80 degree |
| Fiber Options | G.652 / G.657 / 0M1 / OM2 / OM3 |
| Connector type | SC / FC / LC / APC/UPC |
| Port | 1×2,1×4,1×8,2×4,2×8 etc |
| Wavelength | 1310 / 1490 / 1550nm |
| Lead type: | 09mm / 2.0mm / 3.0mm loose tube |
| Minimum Order Quantity | 1000 |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T |
