The Ultimate Guide to Installing & Maintaining MPO/MTP Fiber Optic Patch Panels for High-Speed Networks

In today’s era of high-density data centers and 40G/100G/400G networks, MPO/MTP fiber optic patch panels are critical for enabling scalable, high-bandwidth connectivity. Whether you’re deploying 5G infrastructure, upgrading cloud-ready data centers, or optimizing enterprise networks, mastering the installation and maintenance of these panels ensures minimized latency and maximized uptime. Below, we break down the best practices to achieve flawless performance for your fiber optic systems.

Step-by-Step Installation Guide

1. Pre-Setup Essentials

Begin by gathering tools: fiber optic cable strippers, precision cleavers, MPO/MTP cleaning kits, and polarity-specific connectors. Verify compatibility with single-mode (OS2) or multimode (OM3/OM4/OM5) fibers, depending on your network’s distance and speed requirements (e.g., 40Gbps SR4 or 400Gbps DR4). Ensure your workspace is ESD-safe and free of contaminants to prevent signal loss.

2. Rack or Wall Mounting

Most MPO/MTP patch panels support 1U/2U rack-mount designs for high-density deployments. Align the panel in your rack using tool-free brackets and secure it with evenly tightened screws to avoid connector misalignment. For wall-mounted setups, follow the manufacturer’s load-bearing guidelines to ensure stability in industrial or harsh environments.

3. Fiber Termination & Polarity Management

Strip cable jackets carefully to avoid micro-bending losses. Use angle-polished (APC) or ultra-polished (UPC) connectors for low insertion loss. Terminate fibers into 12/24-fiber MTP connectors, ensuring proper polarity alignment (Type A, B, or C) as per TIA-568 standards. Crimp or epoxy fibers according to specifications, then clean ferrules with 99% isopropyl alcohol wipes to eliminate contamination-related attenuation.

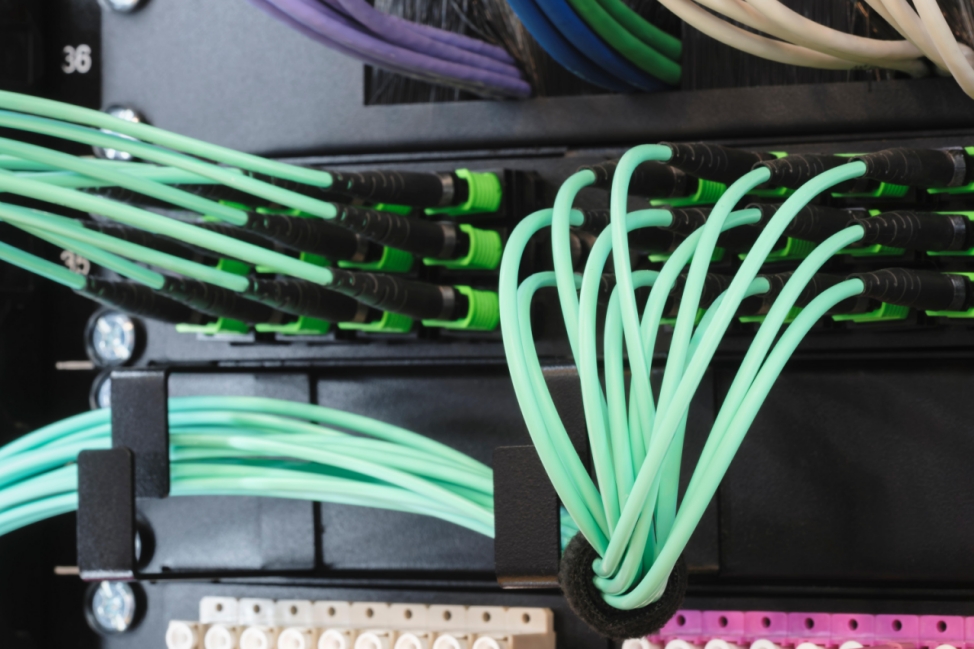

4. Secure Connections & Testing

Insert MTP connectors straight into panel ports until they click. Use a polarity checker or OTDR tester to validate end-to-end continuity and confirm insertion loss < 0.5dB. Label ports clearly for future-proof cable management.

Proactive Maintenance Strategies for Longevity

1. Scheduled Cleaning Routines

Contaminants are the #1 cause of network downtime. Clean MTP connectors every 3–6 months using click-style cleaners or reel-based cassette tools. Inspect ferrules under a fiber microscope to detect scratches or cracks.

2. Damage Prevention & Replacement

Check for bent ferrules, broken latches, or exposed fiber strands. Replace damaged connectors immediately to avoid cascading network failures. Opt for shuttered MPO adapters to protect unused ports in dust-prone environments.

3. Smart Cable Management

Organize fibers with vertical or horizontal cable managers to reduce bend radius violations. Use low-friction looped trays for future scalability and ensure slack loops don’t exceed 1.5 inches to prevent macrobending.

4. Environmental Optimization

Deploy IoT-enabled sensors to monitor temperature (15–25°C) and humidity (30–60% RH). In outdoor or industrial settings, use IP67-rated enclosures to guard against moisture ingress and EMI interference.

Why Choose MPO/MTP Patch Panels for Next-Gen Networks?

Plug-and-play scalability: Ideal for AI/ML workloads and hyperscale cloud deployments.

Space efficiency: 72–144 fibers in 1U vs. traditional LC panels.

Future-ready: Supports 800Gbps upgrades with backward-compatible cassettes.

Conclusion: Partner with Experts for Peak Performance

Proper installation and preventive maintenance of MPO/MTP fiber patch panels are non-negotiable for mission-critical networks. At UnitekFiber, we specialize in high-performance, customizable solutions tailored for data centers, telecom operators, and enterprise IT.
