FTTH indoor breakout drop patch cord have two simplex units fixed by a PVS/LSZH sheath, suitable for office LAN connections. The 2.0*3.0 2~4core ones have FRP or metal reinforcements with good compression resistance, and the fibers at the center of figure-8 cables are protected. CFOFC self-produces cables and connectors with fine workmanship, advanced equipment, standard procedures and stable quality.
Products Details
Product Features
Compliant with IEC standards.
Applicable to FTTH drop optical cables.
Multi-core branching with customizable length.
Featuring low insertion loss and high return loss.
Supporting various types of optical fibers and connector types.
Optional FRP or steel wire reinforcements for diverse cabling.
With ample inventory, available in reel or spool packaging, and ensuring prompt delivery.
Parameters
| Product | Breakout drop patch cord | Manufacturer | CFOFC |
| Fiber type | G657A1 / G657A2 / OM3 / OM4 | Connector Type | FC / SC / LC / ST |
| Cable Jacket | PVC / LSZH | Fiber Count | 2 4 6 8 12 core |
| Strength Member | FRP / Steel wire | Outer Jacket Color | Black / Gray / White / Customizd |
| Insertion Loss (dB) | ≤0.2(max≤0.3) | Cable Diameter | 2.0*3.0mm 2.0*5.0mm |
| Operation Temperature(℃) | -25~+70 | Fire Rating | OFN / OFNR / OFNP |
| Minimum Bending Radius(Dynamic) | 60mm | Minimum Bending Radius (Static) | 30mm |
Applications
Indoors and outdoors in FTTH networks.
Connecting terminal boxes and communication devices.
For LANs and building cabling systems.
Related Products

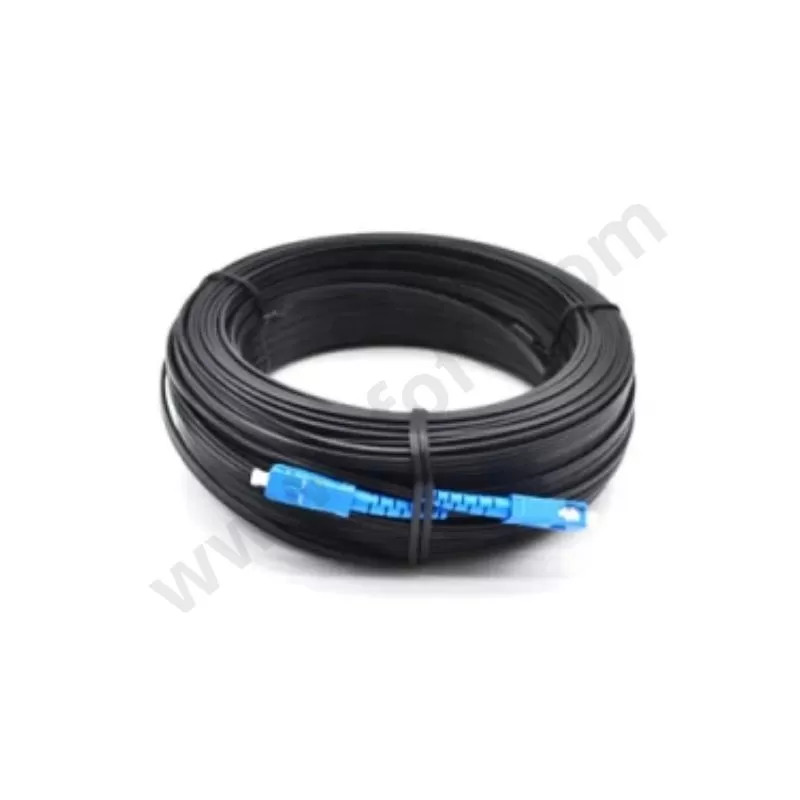

SC/UPC FTTH drop cable patch cord
