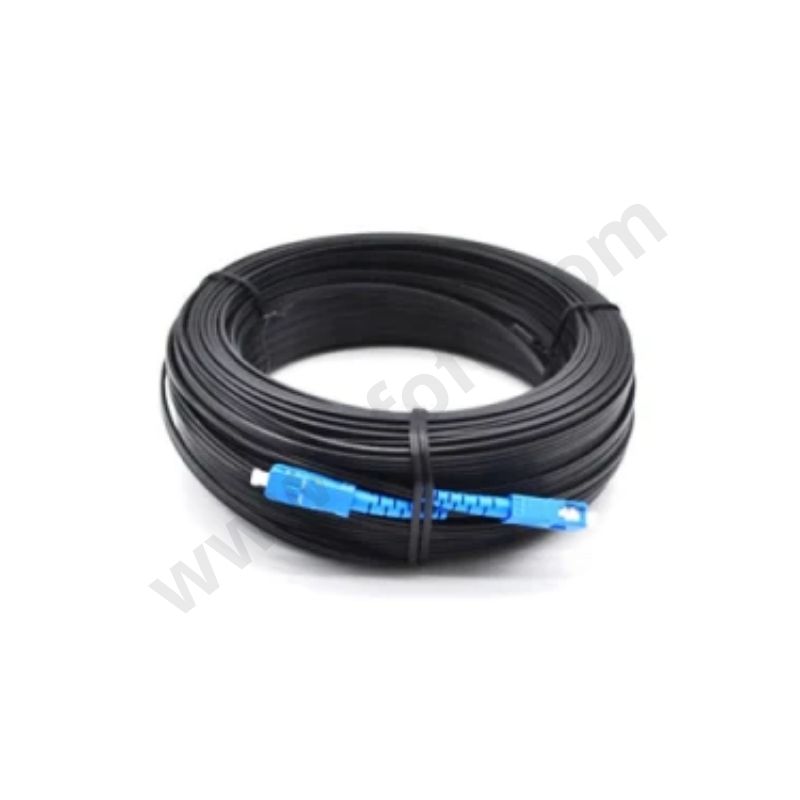

SC/UPC FTTH drop cable patch cord
FTTH drop cable patch cord is specially for FTTH application, it can be used indoor or outdoor to access building to connect the end users’ houses, widely applied in access networks and FTTH indoor cabling. We provide FTTH drop cable with different counts from 1, 2, 4, to 12.
Features
Screw-thread coupling mechanism.
Ceramic ferrules.
Low insertion loss, high return loss.
Good in repeatability and exchangeability.
100% Insertion, Return Loss, End Face and Interference inspection.
Excellent mechanical endurance.
High credibility and stability.
Complying with Telcordia ,GR-326-Core, IEC and RoHS Standard.
Applications
CATV, and Multimedia
Telecommunication networks
Active device interface
Telecommunication networks
Gigabit Ethernet
Data processing networks
Interconnection for O/E modules
Premise installations
Optical switch interframe connection
Asynchronous Transmission Mode (ATM)
Products Details
- Technical Parameters
- Order Information
| Product | FTTH drop cable patch cord | Certification | RoHS,CE IS09001 |
| Fiber mold | SM/MM | Fiber Count | 1-12 Cores |
| Fiber Type | G657A1 / G652D…. | Color | Black,White or Custom |
| Connector | SC/UPC | Length | 20m / 30m / 50m Customized |
| Outer Jacket | PVC / LSZH / OFNP / PE | Sheath Material | PVC/LSZH |
| Insertion Loss (dB) | ≤0.3 | Return Loss (dB) | ≥55 |
| Interchangeability (dB) | ≤0.2 | Tensil Strength (N) | ≥1000 |
| Operating Temperature(℃) | -20~+85 | Storage Temperature (C) | -40~+85 |
| Packaging | 44*44*50 | Production Capacity | 20000 PCS/Day |
| *Contact us for further information | |||
| Fiber Cable Type | 0.25mm bare fiber / 0.6mm,0.9mm tight buffer / 0.6mm, 0.9mm easy-strip 0.6mm,0.9mm semi-tight buffer / OEM ODM customized |
| Connector | SC/ LC / ST / FC |
| Fiber Mode | G.652.D / G657A1 / G657A2 / OM1 / OM2 / OM3 / OM4 / OM5 |
| Jacket Color | White / Black / Customized |
| Jacket Material | PVC / LSZH / Hyterl |
| *ALL Types can be customized according to the customer’s requirements | |
