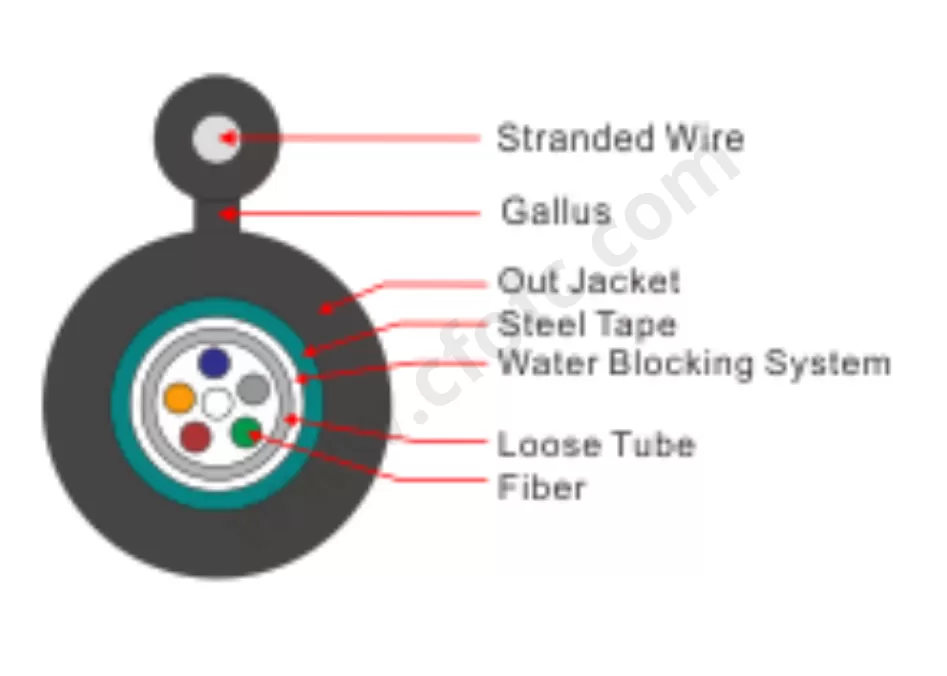

GYTC8S is a typical outdoor use fiber optic cable for aerial applications, GYTC8S is also called the figure 8 cablebecause of its structure looks like the figure 8. We supply single mode and multi mode GYTC8S fiber cables from2-fiber type to 144-fiber type.
Product Features
1. Aerial application, Used for LAN communication
2. CATV & Computer networks system
3. Junction communication systems
Parameters
| Cable type | OD(mm) | Weight | Tensile Strength(N) | rush Resistance(N/100MN | Bending Radius(mm) | |||
| Short-term | Long-term | Short-term | Long-term | Dynamic | Static | |||
| GYTC8S-12~60X | (11.0±0.1)*(20.8±0.5) | 212.0 | 4950 | 2500 | 2000 | 1000 | 20D | 15D |
| GYTC8S-62~72xn | (11.0±0.1)*(20.8±0.5) | 248 | 4950 | 2500 | 2000 | 1000 | 20D | 15D |
| GYTC8S-74~96Xn | (11.0±0.1)*(20.8±0.5) | 285.0 | 4950 | 2500 | 2000 | 1000 | 20D | 15D |
| GYTC8S-98~120xn | (11.0±0.1)*(20.8±0.5) | 332.0 | 4950 | 2500 | 2000 | 1000 | 20D | 15D |
| GYTC8S-122~144xn | （11.0±0.1)*(20.8±0.5) | 397.0 | 4950 | 2500 | 2000 | 1000 | 20D | 15D |
| Storage/'Working temperature(℃) -40~+70 | ||||||||
Applications
1. Aerial application, Used for LAN communication
2. CATV & Computer networks system
3. Junction communication systems
