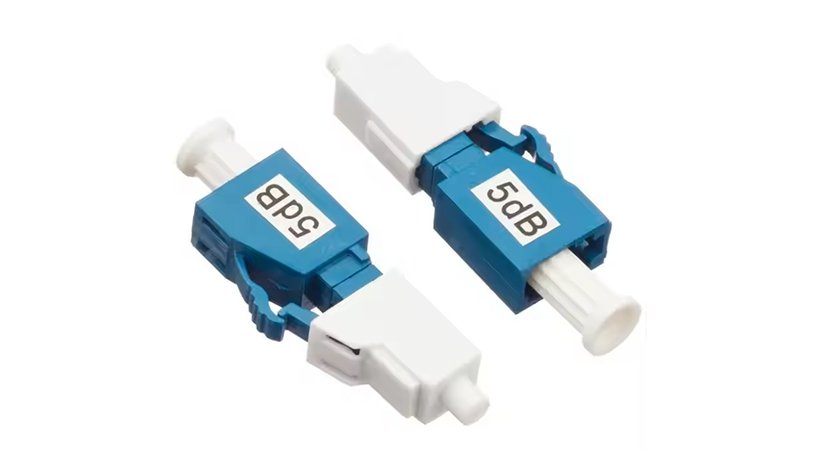

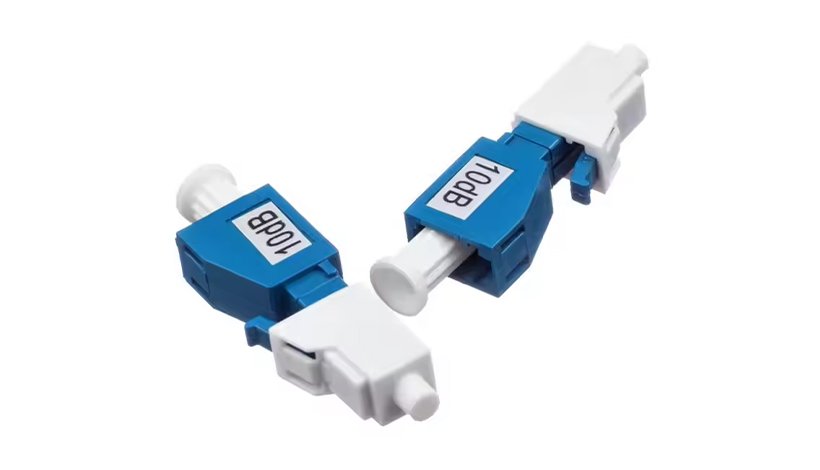

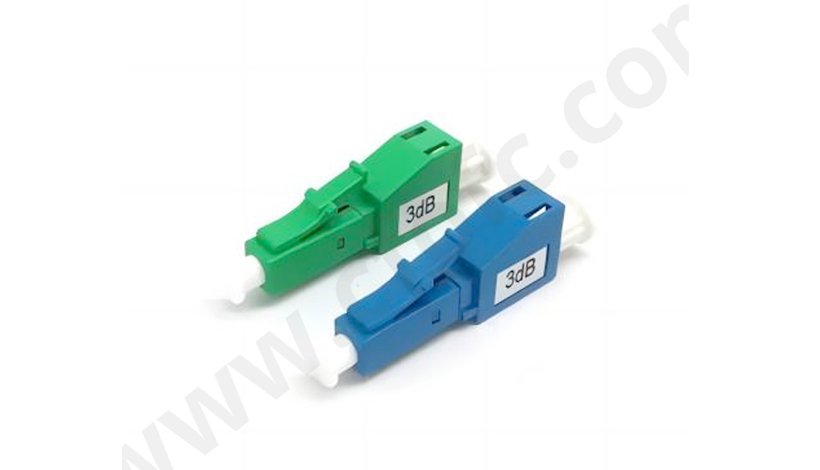

LC Fixed Fiber Optic Attenuator 3dB/5dB/10dB
LC Fixed Type Attenuator offers high performance of variously fixed attenuation for industrial standard connections. Wide attenuation range, extremely low return loss, polarization insensitive, and excellent repeatability.
Features
1.Optics lab
2.Subscriber loop
3.Fiber optical sensor
4.Testing equipment
5.Fiber communication on system test
6.Optical passive component test
7.Optical add-drop multiplexer in the optical power regulator
Applications
1: Connector type: FC, SC, LC, ST, MU
2: Ferrule End-face: PC, UPC, APC
3: Type: Single-mode, Multimode
4: Attenuation: 1-10dB(1dB step), 15, 20, 25, 30dB
5: Mode: Fixed, Female&Male, In-line, Variable
6: Wavelength: 1310nm, 1550nm, 850nm, 1300nm
Products Details
- Products Details
| Fiber Connector | LC/ST Without Flange,SC/FC/LSHwith Flange | Ferrule Type | Zirconia Ceramic |
| Connector Gender | Fixed Female to Female | Transfer Mode | Singlemode |
| Attenuation | 2/3/5/7/10/15dB | Operating Wavelength(nm) | 1260-1620(SM |
| Attenuation Accuracy O | 1-9dB±0.5,10-20dB±109% | Polarization Dependent LO55 | s0.2dB |
| Max Optical Input Power | 200mW | Humidity | 959%RH |
| Operating Temperature Range | -40 to80℃(-40to 176°F) | Storage Temperature Range | -40 to85℃(-40 to 185°F) |
Related Products

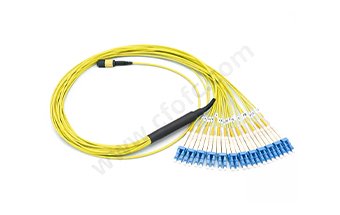

24Fibers sM os2Fanout Harness OFNP CableThe MTP®/MPO Fan-out Patch Cord is a cost-effective solution designed to replace time-consuming on-site terminations. Ideal for high-density data center environments with limited space and complex cable management needs, it enables direct connections between equipment and ODF panels (LC/SC/ST/FC), or between SFP modules.

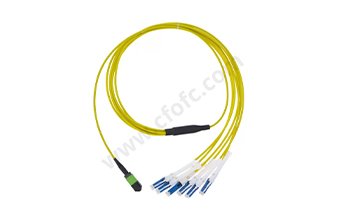

24Fibers sM os2 Fanout Harness OFNp CableMTP®/MPO Fan-out Patch Cord is a cost-effective solution designed to eliminate time-consuming on-site fiber terminations. Ideal for high-density cabling environments, it meets the space-saving and cable management demands of modern data centers.

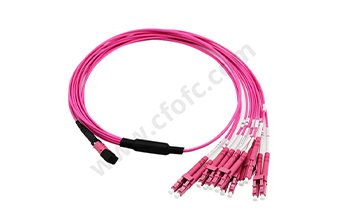

12F MPO MTP 6 Lc Duplex Fanout Cable OM4 MultimodeThe MTP®/MPO Fan-out Patch Cord is a cost-effective solution designed to replace time-consuming on-site fiber termination. It’s ideal for high-density fiber cabling in data centers with limited space and demanding cable management needs.

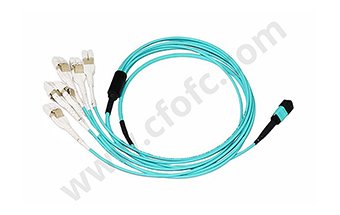

12F MPO MTP® Female to Lc Uniboot Fanout CableDatacenterThe MTP®/MPO Fan-out Patch Cord is a cost-effective solution designed to eliminate time-consuming on-site terminations. Ideal for high-density fiber optic environments in data centers with space constraints and complex cable management needs, it facilitates efficient connectivity.
