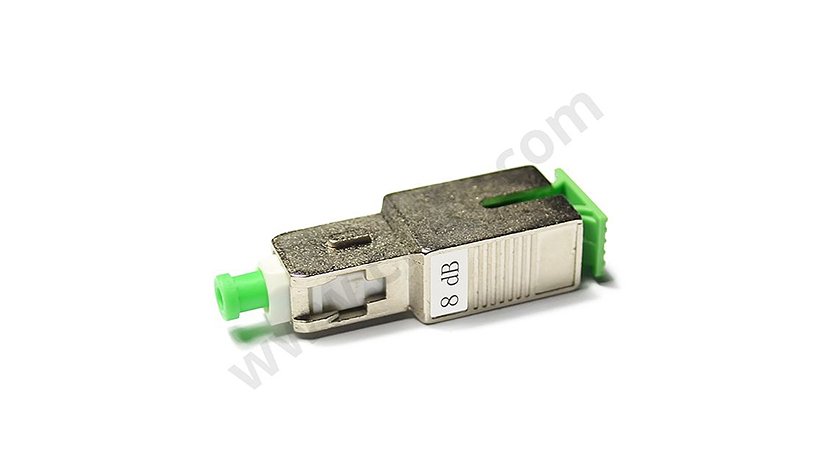

SC/APC Optic Attenuator 1/2/4/10dB
SC Fixed Type Attenuator family offers high performance of variously fixed attenuation for industrial standard connections. Wide attenuation range, extremely low return loss, polarization insensitive, and excellent repeatability.
Features
1: Connector type: FC, SC, LC, ST, MU
2: Ferrule End-face: PC, UPC, APC
3: Type: Single-mode, Multimode
4: Attenuation: 1-10dB(1dB step), 15, 20, 25, 30dB
5: Mode: Fixed, Female&Male, In-line, Variable
6: Wavelength: 1310nm, 1550nm, 850nm, 1300nm
Applications
Optical Power Balancing
Testing and Calibration
FTTx (Fiber to the x) Networks
CATV Systems
WDM Systems (Wavelength Division Multiplexing)
High-Power Laser Systems
Data Centers and Telecom Networks
Products Details
- Products Details
| Fiber type | Single-mode 9/125 | Fiber connector | SC/UPC |
| Return loss | SM/250dB | Insertion loss | SM/0.3dB |
| Jacket material | PC | Insert-pull test | 500times,IL<0.5dB |
| Operation temperature | -20 to 70℃(-4 to 158°F) | Dimensions | 46×27.5x12mm |
