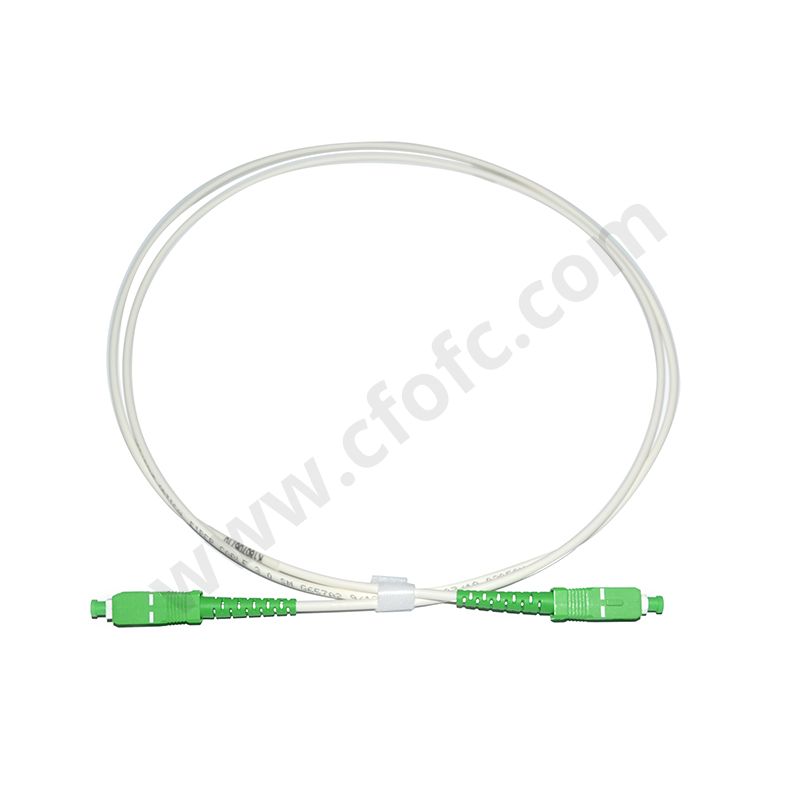

SC/APC-SC/APC Fiber Optic Patchcord 3.0mm Simplex White LSZH Outer Sheath

SC/FC/ST/LC Single-core Dual-core Patch Cords LC Uniboot Passive Optical Patch Cords

Compared to OM1/0M2, OM3, OM4 and OM5 optical fibers are suitable for high bandwidth:

Not exceeding 500 short-distance to medium-distance communications, while OS2 (G.652.D/G.657.A1/G.657.A2/G.657.B2/G.657.B3) optical fiber types are suitable for long-distance, high-performance communication systems.

Inquire Now

Features:

Provide a variety of connector types, with more choices for Class B/C/D, and competitive cost

Ceramic ferrule has an average of more than 1,000 plug-in and pull-out tests, with stable performance and reliable quality.3.Excellent mechanicaendurance

Color-Coded Connector Boots for Easy Identification

Corning ClearCurve® YOFC Fiber with 10mm Min. Bend Radius

Available OFNR、OFNP、CPR(B1ca/B2ca/Cca/Dca/Eca)

Available in single sheath (2.0mm to 3.0mm, typically overall length ≤15m) and double sheath (4.5mm to 5.5mm)

RoHS2 Certification

Technical Parameters:

Connector A	SC	Connector B	SC
Polish Type	APC to APC	Glass Fiber	Corning Clear Curve®
Fiber Mode	OS2 SMF 9/125μm	Wavelength	850/1300nm
Fiber Count	1 Fiber	Polarity
Cable Outside Diameter(OD)	0.9mm,2.0mm,3.0mm	Cable Jacket	Plenum(OFNP)
Min.Bend Radius(Optical Fiber)	7.5mm	Min.Bend Radius (Fiber Cable)	20/10D(Dynamic/Static)
Connector Durablity	500 times	Tensile Strength(Long/ShortTerm)	80/240N
Insertion Loss	0.25dB Max(0.15dB Typ.)	Return Loss	≥50dB
Attenuation at 850nm	≤2.3dB/km	Attenuation at1300nm	≤0.6dB/km
Operating Temperature	-10 to 70℃(14 to 158F)	Storage Temperature	-40 to 85℃
Glass Fiber	Corning, YOFC	Operating Temperature	-10 to +70°C

Applications:

1. Telecommunications

2. CATV, LAN, MAN, WAN, Test & Measurement

3. Military industry

4. Medical
