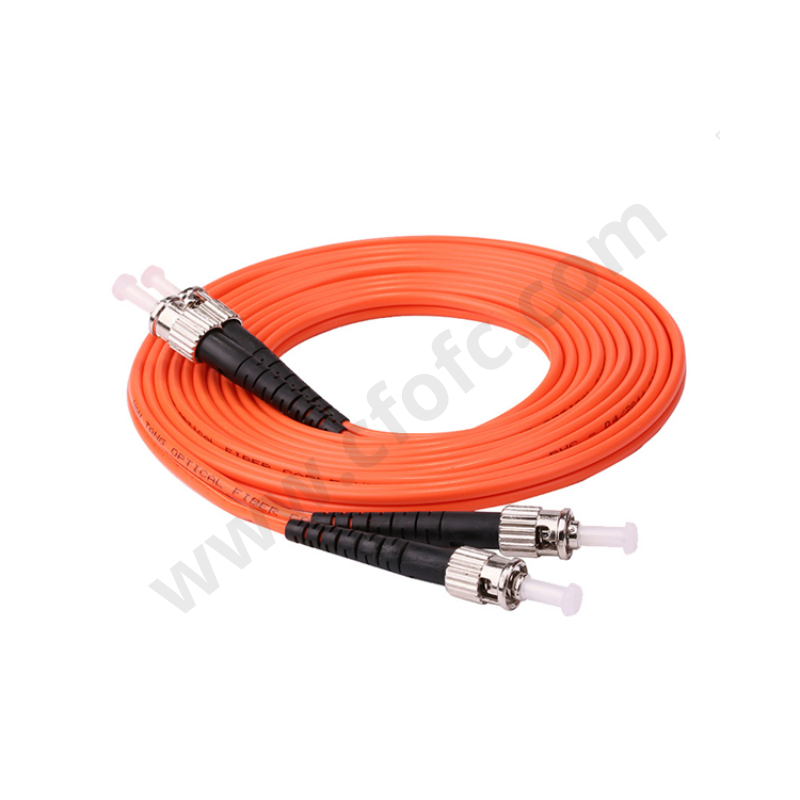

Fiber Optic ST/UPC-ST/UPC Multimode patchcord
Low insertion loss and high return loss
Ferrule end surface pre-polished
Excellent mechanical endurance
Good in repeatability
Good in exchange
Green Production, CE, RoHS Standard
Applications
Fiber optic patch cord is available in both singlemode and multimode versions.
Both singlemode and multimode versions fiber optic patch cord come with a zirconia ceramic ferrule with pre-polished PC, UPC, APC profile and convex spherical end. These end face types allow for faster polishing, and low back reflection and optical loss, while ensuring maximum repeatability
Products Details
- Technical Parameters
- Fiber patchcord Guide
| Connector A | ST | Connector B | ST |
| Polish Type | UPC to UPC | Glass Fiber | Corning Clear Curve® |
| Fiber Mode | OM2 9/125μm | Wavelength | 850/1300nm |
| Fiber Count | 1 Fiber | Polarity | |
| Cable Outside Diameter(OD) | 0.9mm,2.0mm,3.0mm | Cable Jacket | Plenum(OFNP) |
| Min.Bend Radius(Optical Fiber) | 7.5mm | Min.Bend Radius (Fiber Cable) | 20/10D(Dynamic/Static) |
| Connector Durablity | 500 times | Tensile Strength(Long/ShortTerm) | 80/240N |
| Insertion Loss | 0.25dB Max(0.15dB Typ.) | Return Loss | ≥50dB |
| Attenuation at 850nm | ≤2.3dB/km | Attenuation at1300nm | ≤0.6dB/km |
| Operating Temperature | -10 to 70℃(14 to 158F) | Storage Temperature | -40 to 85℃ |
| Glass Fiber | Corning, YOFC | Operating Temperature | -10 to +70°C |
Related Products
Non-Contact MPO OM3 Patch cordThe fiber ends don’t touch, but use a special design to transmit signals efficiently. This avoids issues with multi-fiber connectors not aligning perfectly and offers better resistance to dust and dirt.

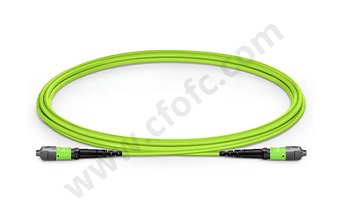

MultimodeTrunk cable 12 Fibers OFNR OFNP Lime GreenMTP/MPO trunks are compact, high-density fiber connectors used in data centers for up to 100G applications. They connect equipment or link modules and panels, with Standard and Elite versions available to meet different power budget needs.

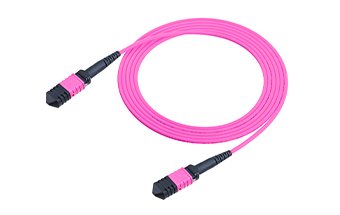

OM4 MultimodeTrunk Cable 12F LSZH MagentaCount on our MPO/MTP Trunk Cable for high-density data center connections. Built for 100G performance, it uses US Conec MTP and Senko MPO Plus connectors to ensure low loss and strong signal integrity. Factory-terminated and tested, it delivers reliable, high-speed data transfer right out of the box.

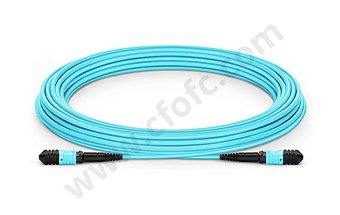

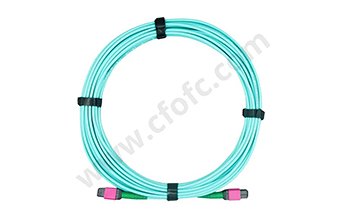

OM3 MultimodeTrunk Cable 24 Fibers LSZH AquaMTP/MPO trunks are compact, high-density fiber assemblies designed for up to 100G data center applications. Available in Standard and Elite grades, they connect equipment or interlink panels to meet various power budget needs.
