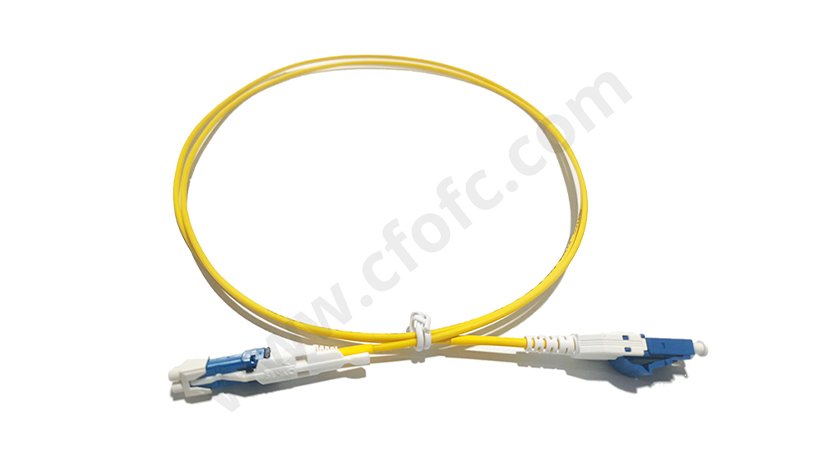

High Density Data Center Telecom CS-LC Fiber Optic Patchcord
The CS® connector was introduced as a replacement to current duplex LC connectors which are too big for newer generation transceiver interfaces and to increase the connector density in patch panels. The CS® connector is operated with a push-pull mechanism having two cylindrical, spring-loaded 1.25mm ferrules, within a single housing. The CS® connector’s two ferrules are pitched at 3.8mm apart, which is the minimum possible spacing to meet today’s TOSA and ROSA optics requirement. The CS® connector can be used with either 2mm or 3mm jacketed cable. Compared to a standard duplex LC connector, the CS® connector has a 40% width reduction, which is a high value proposition especially in data centers where space is a premium.
Feature
Singlemode CS/UPC to CS/UPC Fiber Optic Patch Cable
The uniboot design allows one cable to carry both fibers, reducing cable congestion when routing. It is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.
Its reverse-polarity design allows for quick and easy polarity conversion without exposing the fibers or needing any tools.
Applications
• Serial, Parallel and WDM optical cabling schemes
• Central Network Point of Administration cross-connect
• Trunk cabling to Zone Cabinets, switches and servers
• CS/CS trunk cables
• MPO/MPO trunk cables
• CS/MPO trunk cables
• CS/CS jumpers 2.0mm O.D.
• CS/LC jumpers 2.0mm O.D.
• Patch panel channel counts in 1RU – 128Ch, 144Ch & 160Ch matches uo to either 32 channel and 36 channel port counts
• 10G, 40G, 100G, 200G & 400G
Products Details
- Contrast and scenes
