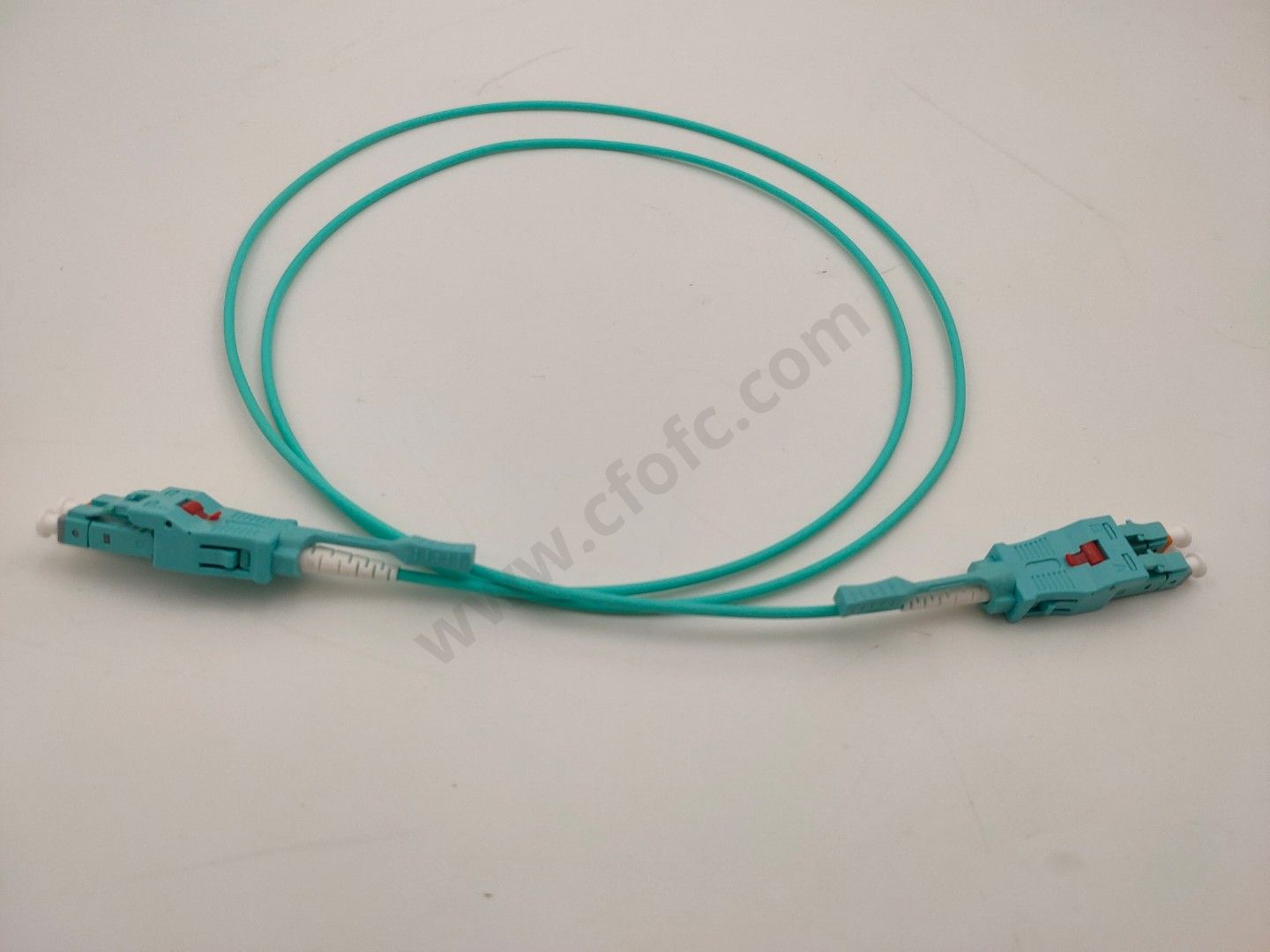

LC/UPC Uniboot Fiber Optic Patchcord Polarity Reversible With Pull Tap Blue Beige
Polarity Switchable Uniboot LC LC Fiber Connector 2.0mm/3.0mm.
Product Version 2*LC Uniboot Connector Polarity Switchable UPC/APC/AQUA with Pull Tab White Boot
LC/UPC Uniboot Fiber Optic Patchcord Polarity Reversible With Pull Tap Blue Beige
Polarity Switchable Uniboot LC LC Fiber Connector 2.0mm/3.0mm.
Product Version 2*LC Uniboot Connector Polarity Switchable UPC/APC/AQUA with Pull Tab White Boot
Products Details
- Technical Parameters
- Details
- Specification
| 85/85 Test | 2000H |
| Insertion Loss | ≤0.2dB |
| Durability | ≤0.2dB( 500 Times) |
| Cable OD | 2.0MM / 3.0MM |
| Housing Material | PPSU |
| Boot Type | 2.0MM / 3.0MM Uniboot V2 |
| Boot Color | White |
| Housing Color | Blue/Aqua |
| Housing Type | General |
| Operating Temp | -40℃～+80℃ |
| Storage Temp | -40℃～+80℃ |
| Meet Standards | IEC61754-20 / YD/T 1272.1 / UL94-V0 |
| Certification | ISO9001 |

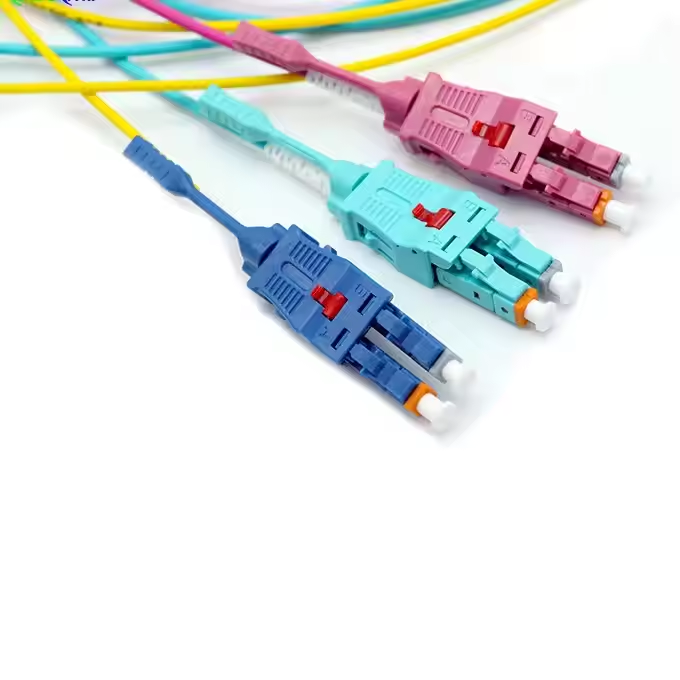

| Product Name | LC Fiber Optic Uniboot Connector | Color | Green/Blue/Agua/Fushcia |
| Mode Type | Singlemode, Multimode | Insertion Loss | ≤0.2dB |
| Sleeve Pull Force | 1-2.5N | Durability | ≤0.2dB( 500 Times) |
| Operating Temp | -40℃ ~ +80° | Standards | IEC61754-20/YD/T 1272.1/ UL94-V0 |
| Properties | Test condition | Conformance | Test result |
| Vibration | 10-55Hz,1.5mm, 60min | IEC61300-2-1 | ≤0.2dB |
| Mating Durability | 500 Mating, clean every 25 meating | IEC61300-2-2 | ≤0.2dB |
| Impact | 1.5m, 8 drops | IEC61300-2-12 | ≤0.2dB |
| Strength of Coupling Mechanism | 40N,10Min, L=22-28cm | IEC61300-2-6 | ≤0.2dB |
| Temperature Cycling | 40°C to +85°C,40 cycles | IEC61300-2-22 | ≤0.2dB |
| Temperature humidty cycling | 40°C, 95%RH, 96H | IEC61300-2-21 | ≤0.2dB |
| Operating Temperature | -40°C to +85 | ≤0.2dB | |
| Storage Temperature | -40℃ to +85°C | ≤0.2dB |
