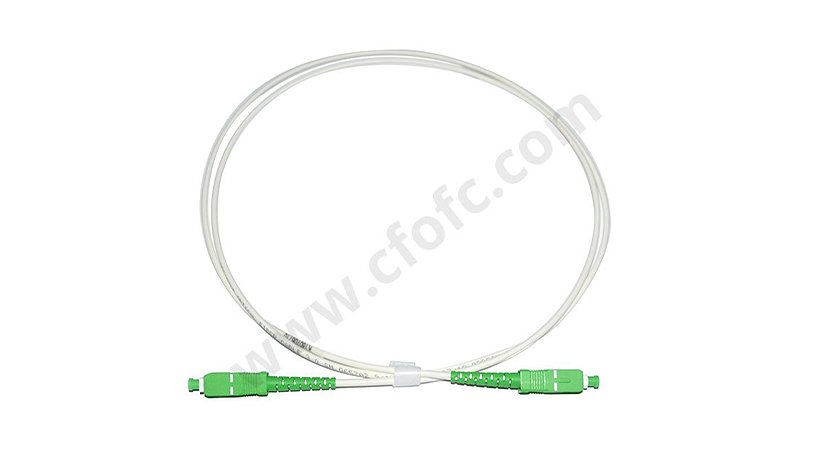

SC/APC-SC/APC Fiber Optic Patchcord 3.0mm Simplex White LSZH Outer Sheath
SC/FC/ST/LC Simplex/Duplex Patch Cords
Compared to OM1/0M2, OM3, OM4 and OM5 optical fibers are suitable for high bandwidth:
Not exceeding 500 short-distance to medium-distance communications, while OS2 (G.652.D/G.657.A1/G.657.A2/G.657.B2/G.657.B3) optical fiber types are suitable for long-distance, high-performance communication systems.
Feature
Provide a variety of connector types, with more choices for Class B/C/D, and competitive cost
Ceramic ferrule has an average of more than 1,000 plug-in and pull-out tests, with stable performance and reliable quality.3.Excellent mechanicaendurance
Color-Coded Connector Boots for Easy Identification
Corning ClearCurve® YOFC Fiber with 10mm Min. Bend Radius
Available OFNR、OFNP、CPR(B1ca/B2ca/Cca/Dca/Eca)
Available in single sheath (2.0mm to 3.0mm, typically overall length ≤15m) and double sheath (4.5mm to 5.5mm)
RoHS2 Certification
Applications
1. Telecommunications
2. CATV, LAN, MAN, WAN, Test & Measurement
3. Military industry
4. Medical
Products Details
- Technical Parameters:
- Fiber Patch Cables
| Connector A | SC | Connector B | SC |
| Polish Type | APC to APC | Glass Fiber | Corning Clear Curve® |
| Fiber Mode | OS2 SMF 9/125μm | Wavelength | 850/1300nm |
| Fiber Count | 1 Fiber | Polarity | |
| Cable Outside Diameter(OD) | 0.9mm,2.0mm,3.0mm | Cable Jacket | Plenum(OFNP) |
| Min.Bend Radius(Optical Fiber) | 7.5mm | Min.Bend Radius (Fiber Cable) | 20/10D(Dynamic/Static) |
| Connector Durablity | 500 times | Tensile Strength(Long/ShortTerm) | 80/240N |
| Insertion Loss | 0.25dB Max(0.15dB Typ.) | Return Loss | ≥50dB |
| Attenuation at 850nm | ≤2.3dB/km | Attenuation at1300nm | ≤0.6dB/km |
| Operating Temperature | -10 to 70℃(14 to 158F) | Storage Temperature | -40 to 85℃ |
| Glass Fiber | Corning, YOFC | Operating Temperature | -10 to +70°C |
