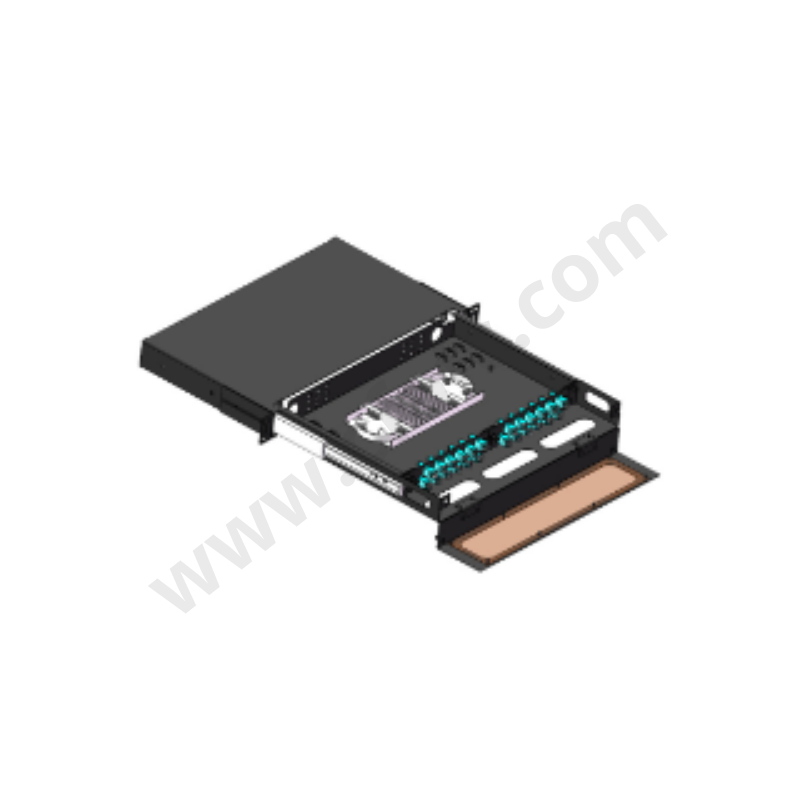

ODF 19inch 12/24 Cores 1U Patch Panel
Slidable Rack-mount Fiber Optic Distribution Box. Aluminum fittings with self-locking. 19-inch rack mount for various adapters. Drawer for splicing, easy fiber withdrawal. Made of cold rolled materials, electrostatic sprayed.
Features
Standard size, light weight and reasonable structure.
Slide-out drawer for easy cable management.
Suitable for ribbon and single fiber.
Compact design for space saving.
Various panel plates to fit different adapter interfaces.
Front mark on the plate for easy identification and operation.
Easy for management and operation.
Products Details
- Technical Parameters
| Operating temperaturc | -25℃~+40℃ | Model | CF-24F-1U |
| Storage temperaturc | -25°℃~+55c | Adapter | SC/LC/FC/ST/E2000 |
| Relative humidity | <85%(+30°℃) | Height | 1U |
| Air pressure | 70Kpa~106Kpa | Dimension(LxWxH) | 482mmx305mmx44.5mm |
| Color | Beige / Black | Weight(Kg) | 3.5 |
