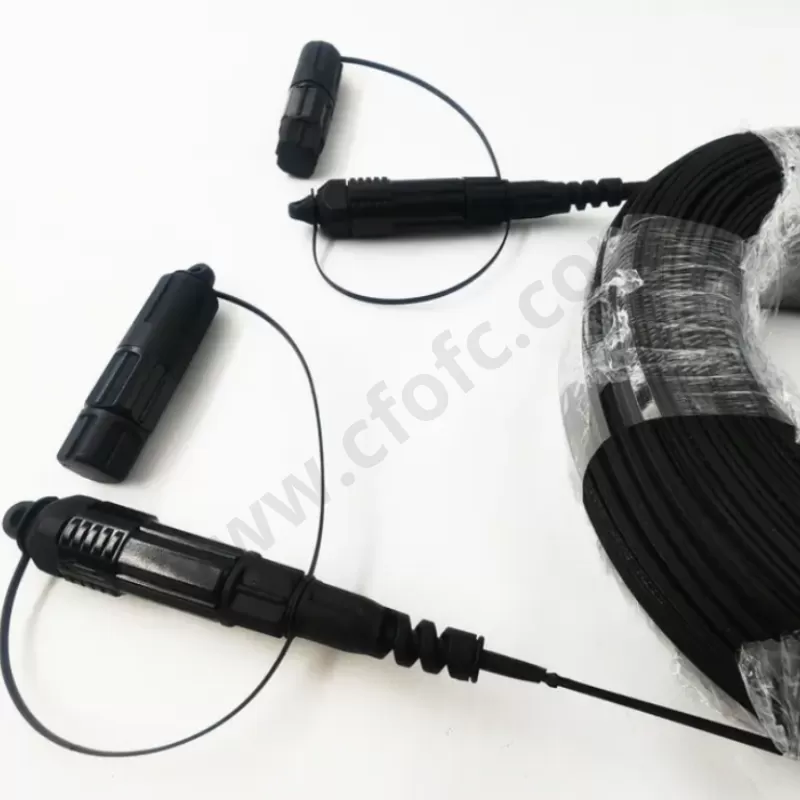

2 in 1 optitap and huawei compatible waterproof pathcord

It mates with Corning OptiTap™ adapter and Huawei mini SC adapter. The TW hybrid connector enables different connecting methods in the field. TW cable assemblies offer the most cost-effective way to deploy optical fiber in outside plant distribution networks, with speeds significantly faster than traditional field installations.

Inquire Now

Products Details

Product Features

IP68 protection with salt-mist, humidity and dust proofing for harsh industrial environments.

Enables different connecting methods in the field.

Utilizes traditional installation techniques for various applications.

Reduces installation time by up to 50% per access point.

IL mean 0.2dB, max. 0.5dB.

100% optically tested for quality.

Available in single and multimode for common fiber types.

Broad temperature range (-40 to +85°C) for indoor/outdoor use.

Parameters

Application cable	3,5 round drop cable,P23,P25 figure-8 fiber cable	Insertion loss (IL)(dB)	Typical value ≤0.15dB,maximum value ≤0.3dB.
Return loss (RL)(dB)	≥60dB.	Mechanical durability	50 times,IL≤0.3dB.
Tensile strength	≥200N.	Operating temperature	-25℃+85℃.
Waterproof level	IP68	Minimum Order Quantity	10Pcs
Price	Negotiable	Delivery Time	5-8 work days
Packaging Details	Individual Pack,plus outer cartons	Payment Terms	L/C,T/T,Paypal,Western Union

Applications

Outdoor FTTP, FTTA

Broadband;

Telecom networks

Optical test equipments

Local area networks

Wide area networks
