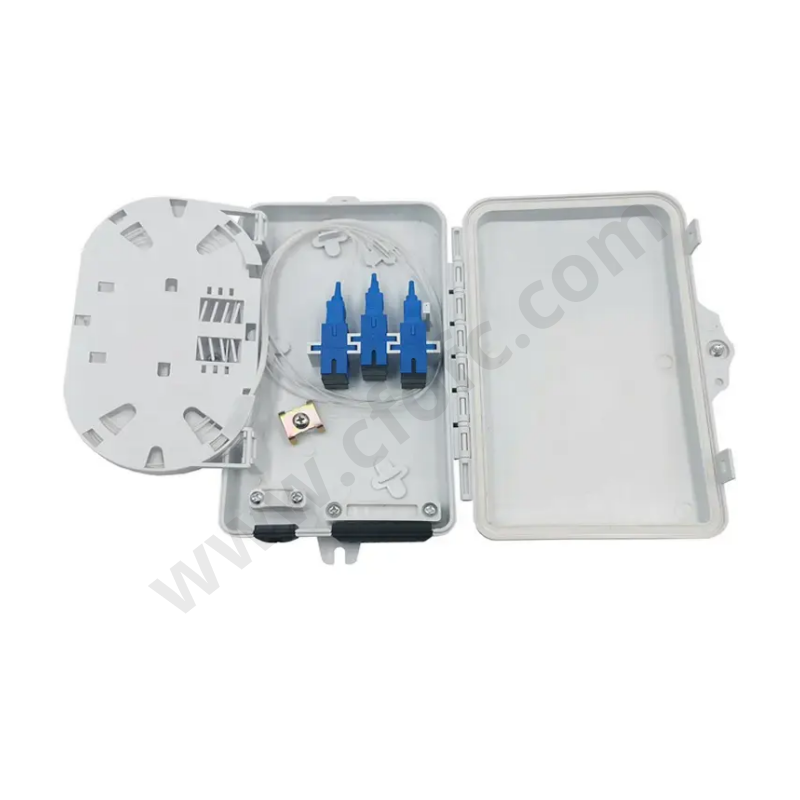

FTTH Indoor 6 port SC/UPC wall outlet
Fiber to the home infrastructures require powerful management systems. The FTTH termination box is a small yet crucial part. It offers cost-effective solutions for FTTH. Used for various fiber systems, it has a light and compact design. Some are for indoor, others outdoor. Mostly wall-mounted with optional capacities from single to 24 ports or more
Features
High-quality SC/UPC connectors for stable signal.
Six ports for multiple connections.
Compact design saves space.
Easy wall-mount installation.
Durable materials.
Resistant to dust and moisture.
Compatible with various cables and equipment.
Applications
Widely used in FTTH access network
Telecommunication networks
CATV networks
Data communication networks *Local area Networks
Products Details
- Technical Parameters
- Order Information
| Number of ports | 6 | Applicable fiber type | SM / MM |
| Port type | SC/UPC | Return loss | ≥50dB |
| Insertion loss | ≤0.3dB | Operating temperature | -40℃ to +85℃ |
| Tensile strength | ≥50N | Storage temperature | -40℃ to +85℃ |
| Installation method | Wall-mounted | Shell material | flame-retardant plastic |
| Color | Black/ Grey/White/Customized | Brand Name | CFOFC |
| Insertion& extraction times | ≥1000 times | Size | 192*132*52 |
| Fiber Connector Type | LC/SC/FC/ST/MPO |
| Port number requirement | 1core / 2 ports / 4 ports / 6ports Customized |
| Usage scenario | Indoor/outdoor/dual-purpose for indoor and outdoor |
| Installation method | Wall-mounted / pole-mounted |
| Performance requirements | insertion loss and return loss |
| Design features | Degree of lightness and compactness |
