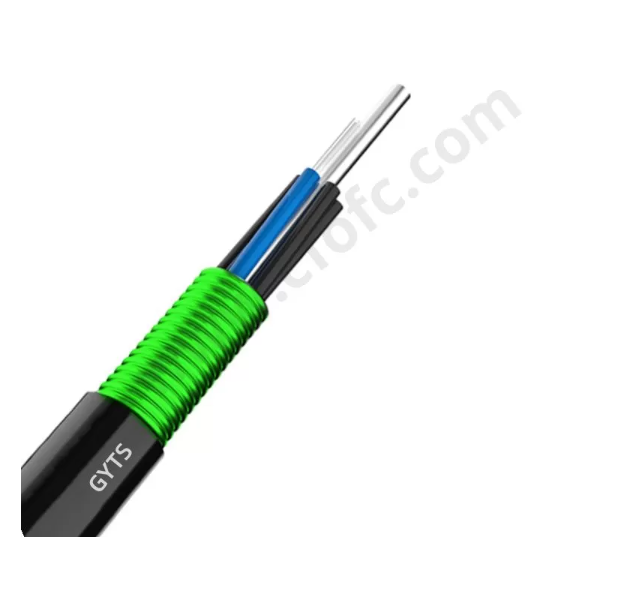

GYTS Outdoor Cable
GYTS is the outdoor fiber optic cable type used for duct and aerial applications. The loose tube stranding technology make the fibers have good secondary excess length.
Feature
- Up to 144 fiber cores.
- The loose tube stranding technology make the fibers have good secondary excess length.
- Metal strength member provides excellent strain performance.
- Corrugated steel tape armored and PE outer sheath providing property crush resistance and gun shot resistance features.
- The fibers free movement in the tube, which keeps the fiber stress-free while the cable issubjected to longitudinal stress.
Applications
1. Stallation in aerial or duct environment for long haul communication
2. LAN, especially suitable for the situation of high requirements to lateral pressure resistance
Products Details
- Product Parameters
- Fiber Optic Cable Options
- Fiber Optic Cable Jacket & Diameter Options
- Fiber Optic Cable Core Type Options
| Cable type | OD(mm) | Nominal Weight (kg/km) | Tensile Strength (N) | Crush Resistance(N/100MM) | Bending Radius(mm) | |||
| Short-term | long-term | Short-term | long-term | Dynamic | Static | |||
| GYTS-2~60Xn | 10.5±0.5 | 88.0 | 1500 | 600 | 1000 | 300 | 20D | 15D |
| GYT5-62~72Xn | 11.5±0.5 | 102.0 | 1500 | 600 | 1000 | 300 | 20D | 15D |
| GYTS-74~96Xn | 13.0±0.5 | 130.0 | 1500 | 600 | 1000 | 300 | 20D | 15D |
| GYT5-98~144Xn | 15.8±0.5 | 156.0 | 1500 | 600 | 1000 | 300 | 20D | 15D |
| Storage/Working temperature(℃) -40~+70 | ||||||||
