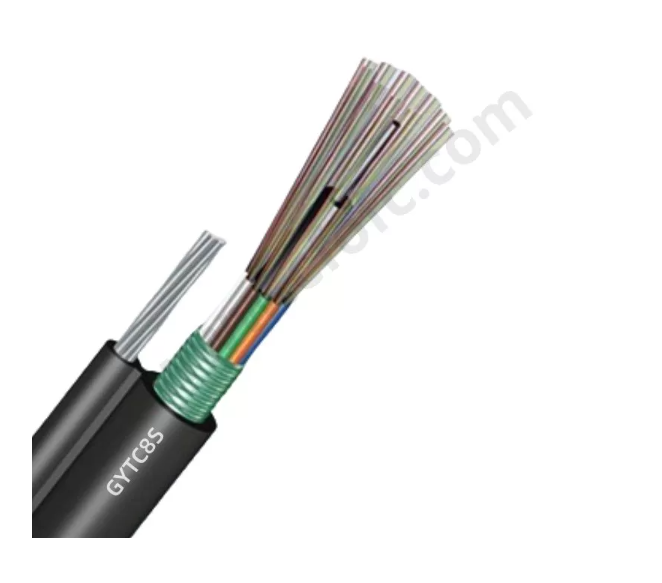

GYXTC8S Outdoor Cable
GYXTC8S fiber optic cable is a figure 8 structure cable suitable for installation in aerial environment for long haul communications, This optical cable is 2 cores to 24 cores types available.
Feature
- Convenientinstallation
- Excellent strain performance
- High strength loose tube that is hydrolysis resistant
- Medium Density Polyethylene Jacket, low friction installation
Applications
1. Aerial application.
2. Subscriber network systems.
3. Junction communication systems.
4. CATV & Computer networks system
Products Details
- Product Parameters
- Fiber Optic Cable Options
- Fiber Optic Cable Jacket & Diameter Options
- Fiber Optic Cable Core Type Options
| Cable type | OD(mm) | Weight | Tensile Strength(N) | rush Resistance(N/100MN | Bending Radius(mm) | |||
| Short-term | Long-term | Short-term | Long-term | Dynamic | Static | |||
| GYTC8S-12~60X | (11.0±0.1)*(20.8±0.5) | 212.0 | 4950 | 2500 | 2000 | 1000 | 20D | 15D |
| GYTC8S-62~72xn | (11.0±0.1)*(20.8±0.5) | 248 | 4950 | 2500 | 2000 | 1000 | 20D | 15D |
| GYTC8S-74~96Xn | (11.0±0.1)*(20.8±0.5) | 285.0 | 4950 | 2500 | 2000 | 1000 | 20D | 15D |
| GYTC8S-98~120xn | (11.0±0.1)*(20.8±0.5) | 332.0 | 4950 | 2500 | 2000 | 1000 | 20D | 15D |
| GYTC8S-122~144xn | l11.0±0.1)*(20.8±0.5) | 397.0 | 4950 | 2500 | 2000 | 1000 | 20D | 15D |
| Storage/’Working temperature(℃) -40~+70 | ||||||||
Related Products
GYXTW Outdoor CableGYXTW is an outdoor use optical fiber cable suitable for duct and aerial applications. We supply GYXTW from 2 fiber cores to 24 fiber cores. Both single mode type and multi mode types are available.
GYTS Outdoor CableGYTS is the outdoor fiber optic cable type used for duct and aerial applications. The loose tube stranding technology make the fibers have good secondary excess length.

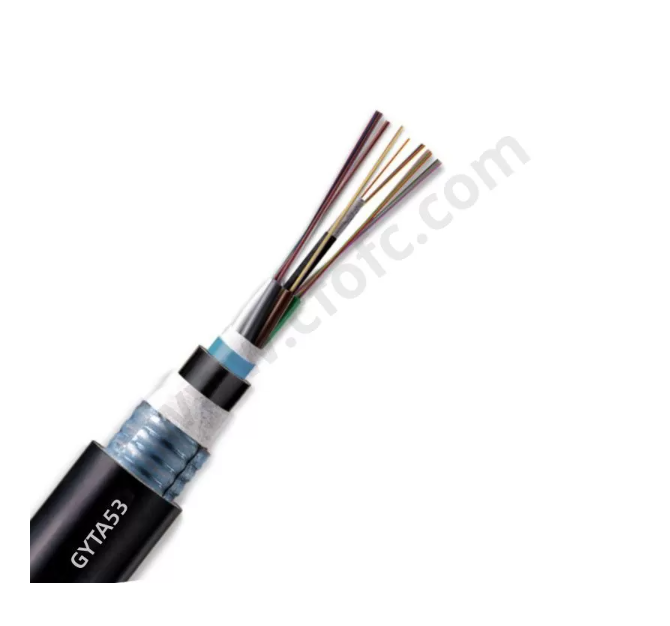

GYTA53 Outdoor CableGYTA53 Outdoor Cable used for Double-jacket structure provide the cable nice properties of moisture resistance and crushreistance. Double armored structure provide cable good property of rodent-resistance. It can be used for duct and direct buried application, suitable for harsh environments.
