Fireproof 6/8/12/24/48 Fibers Flat Ribbon Optical Cable LSZH
Feature

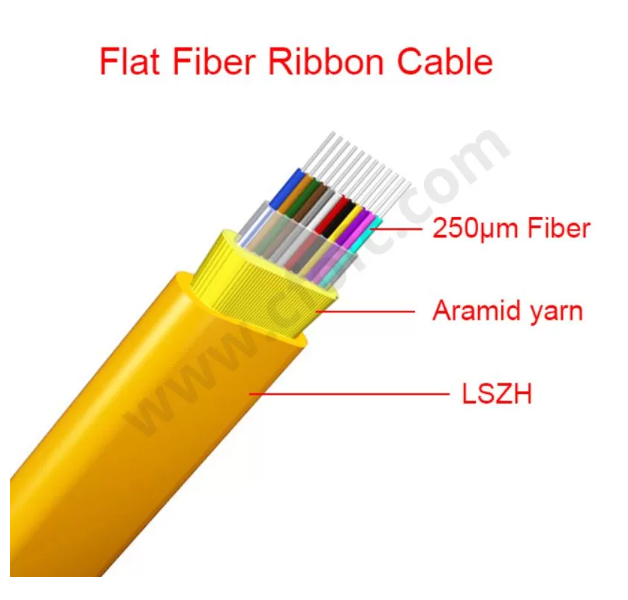

- Multi-cores in one tube and are lined with color numbers
- Lined fibers with different colors make it easy for installation
- High strength aramid yam offers high tensile strength
- Flame- retardant
- It’s avalable under high and low temperatures
Applications
1. Indoor pipe wiring systems
2. MPO/MTP high density wiring systems
3. Connecting for indoor equipments
Products Details
- Technical Parameters
- Fiber Optic Cable Options
- Fiber Optic Cable Jacket &Diameter Options
- Fiber Optic Cable Core Type Options
| Cable Type | OD(mm) | Nominal welght(e/M) | Tension(N) | Min.bending rodius(mm) | Crush Peslstance(N/100mm²) | ||
| ongterm | Short term | Static | Dynamlc | ||||
| GJFDBV 4xn | 3.5*2.5 | 12 | 200 | 80 | 35H | 25H | 500 |
| GJFDBV-6xn | 3.8*2.5 | 13 | 200 | 200 | 35H | 25H | 500 |
| GJFDBV-8xn | 4.5*2.5 | 15 | 200 | 200 | 35H | 25H | 500 |
| GIEDBV-12xn | 5.0*2.5 | 17 | 200 | 200 | 35H | 25H | 500 |
