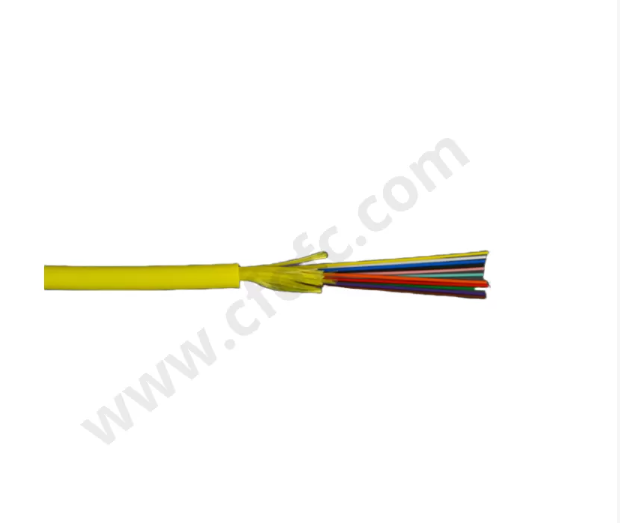

Indoor Simplex 1.6mm/1.8mm/2.0mm/ 3.0mmOptical Cable G652D/G657A1/G657A2/G657B3 LSZH Sheath
GJFJV Simplex Round Cable use 900um tight buffer fiber as optical communication medium, the tightbuffer fiber wrapped with a layer of yarn as strength member, and the cable is completed with outsidejacket. (PVCOFNR, OFNPLSZH or other material as requirements
Feature
- High strength Kevlar yarn member
- High quality tight buffered or loose tube
- Round structure, soft and easy to strip
- Excellent temperature performance
Applications
1. Components for various of indoor cable
2. Suitable for patch cord and pigtails
3. Suitable for various of communication equipments
Products Details
- Technical Parameters
- Fiber Optic Cable Options
- Fiber Optic Cable Jacket &Diameter Options
- Fiber Optic Cable Core Type Options
| Cable type | OD(mm) | Nominal Weight (kg/km) | Tensile strength(N) | Crush Resistance (N/100MM) | Bending Radius(mm) | |||
| Short-term | Long-term | Short-term | Long-term | Dynamic | Static | |||
| GJFJV-1Xn | 1.8±0.2 | 2.5 | 100 | 60 | 500 | 100 | 20D | 15D |
| GJFJV-1Xn | 2.8±0.2 | 3.5 | 100 | 60 | 500 | 100 | 20D | 15D |
| Storage/Working temperature(℃) | -20~+60 | |||||||
