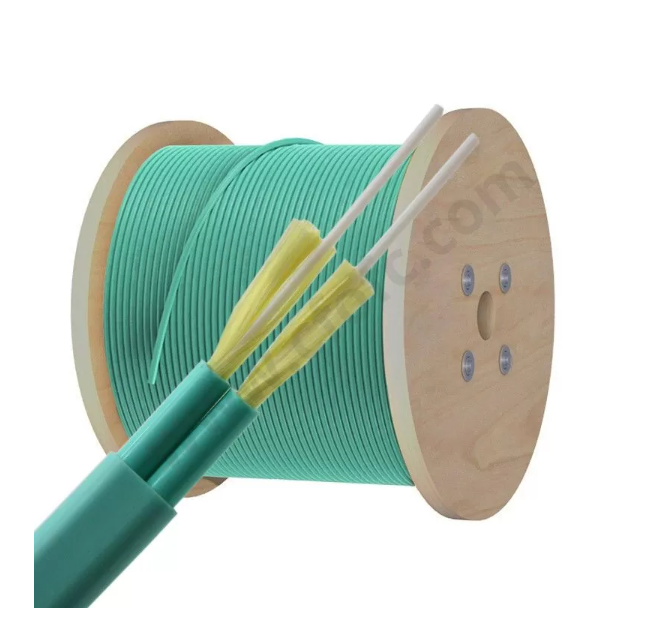

Ruggedized MM Duplex Indoor Optical Cable High Pulling Force
The duplex cable uses two 900um or 600um tight buffered fibres as optical transmissionmedium, covered with aramid yarns as the strength member, then a LSZH sheath isextruded Other sheath materials are available on request.
Feature
- Tight buffered fibres with excellent strippability
- Good flame-retardant performance
- Aramid yarns providing excellent tensile performance
- Anti-corrosion, water blocking, flame-retardant and environment-friendly
Applications
1. Fibre jumper or pigtail
2. Indoor riser level and vertical cabling
3. Interconnection between instruments and communication equipments
Products Details
- Technical Parameters
- Fiber Optic Cable Options
- Fiber Optic Cable Jacket &Diameter Options
- Fiber Optic Cable Core Type Options
| Type | cable diameter (mm) | Cable weight (kg/km) | Tensile strength long short term (N) | Bending redlus Dynamic (mm） | crush long/short term (N/100mm) | Storage temperature |
| GJFJH-2Xn | 3.5 | 12.6 | 400/800 | 60/30 | 500/1000 | 20~+60 |
Related Products

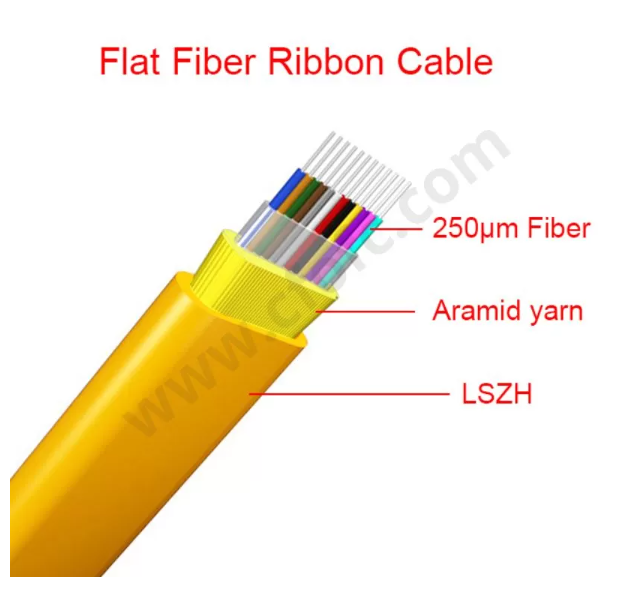

Fireproof 6/8/12/24/48 Fibers Flat Ribbon Optical Cable LSZHOptical fiber ribbon flat optical cable uses optical fiber ribbon as the optical transmission medium, covered with a layer of aramid fiber as the force strengthening unit, and extruded a layer of polyvinyl chloride (PVC) or low-smoke halogen-free material (LSZH, low-smoke, halogen-free, flame retardant) jacket.

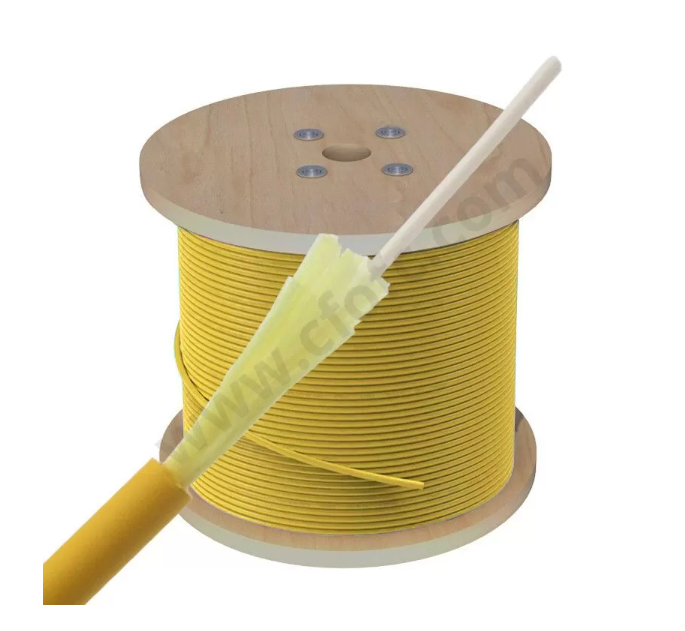

Indoor Simplex 1.6mm/1.8mm/2.0mm/ 3.0mmOptical Cable G652D/G657A1/G657A2/G657B3 LSZH SheathGJFJV Simplex Round Cable use 900um tight buffer fiber as optical communication medium, the tightbuffer fiber wrapped with a layer of yarn as strength member, and the cable is completed with outsidejacket. (PVCOFNR, OFNPLSZH or other material as requirements)

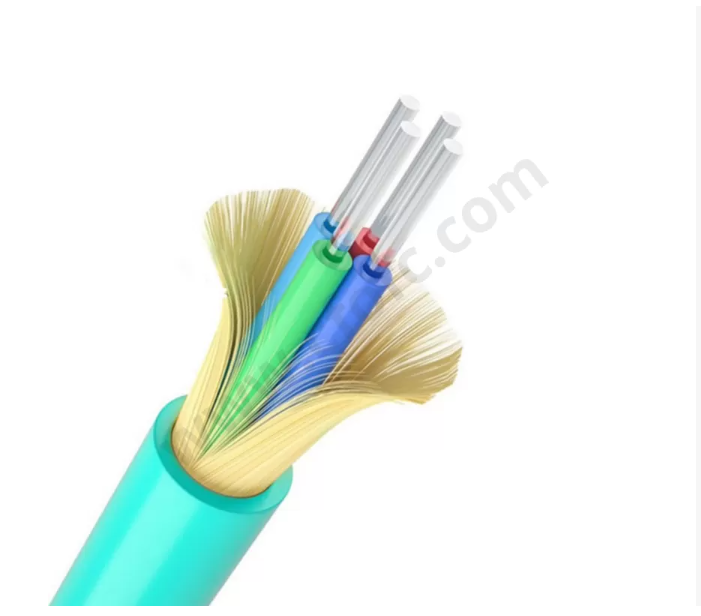

2/4/8/12/24/48/96/144 Fiber Optical OM3 Distribution Indoor Cable Aqua SheathGJPFJV Multi-Core Round Tight Buffered Distribution lndoor Fiber Optic Cable with good mechanical andenvironmental characteristics. Flame retardant characteristics meet the requirements of relevant standards. The mechanical and physical characteristics of the outer jacket meet the requirement of relevant standards. Soft, flexible and easy to do stripping, splicing and cabling.
