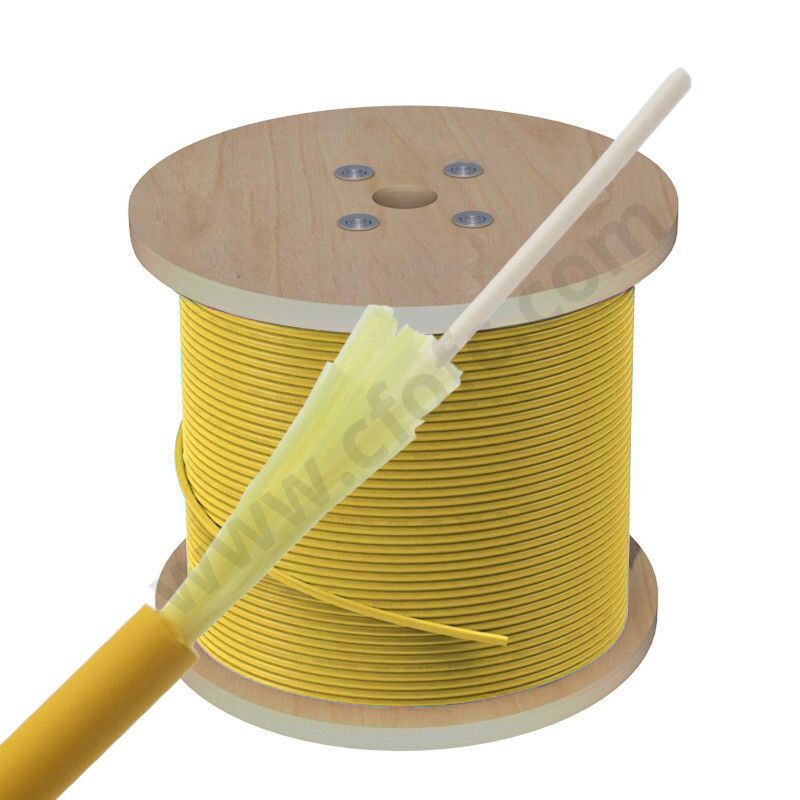

GJFJV Simplex Round Cable use 900um tight buffer fiber as optical communication medium, the tightbuffer fiber wrapped with a layer of yarn as strength member, and the cable is completed with outsidejacket. (PVCOFNR, OFNPLSZH or other material as requirements)
Products Details
Product Features
High strength Kevlar yarn member
High quality tight buffered or loose tube
Round structure, soft and easy to strip
Excellent temperature performance
Parameters
| Cable type | OD(mm) | Nominal Weight (kg/km) | Tensile strength(N) | Crush Resistance (N/100MM) | Bending Radius(mm) | |||
| Short-term | Long-term | Short-term | Long-term | Dynamic | Static | |||
| GJFJV-1Xn | 1.8±0.2 | 2.5 | 100 | 60 | 500 | 100 | 20D | 15D |
| GJFJV-1Xn | 2.8±0.2 | 3.5 | 100 | 60 | 500 | 100 | 20D | 15D |
| Storage/Working temperature(℃) | -20~+60 | |||||||
Applications
1. Components for various of indoor cable
2. Suitable for patch cord and pigtails
3. Suitable for various of communication equipments
Order Information
Xn is fiber optic model and D is the diameter of optical cable
Ordering Information
Fiber Optic Cable Options
Fiber Optic Cable Jacket &Diameter Options
Fiber Optic Cable Core Type Options
