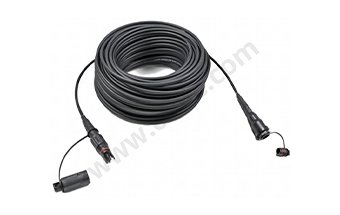

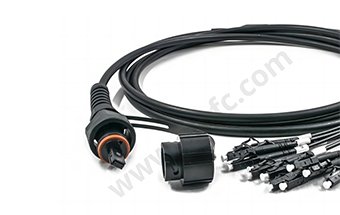

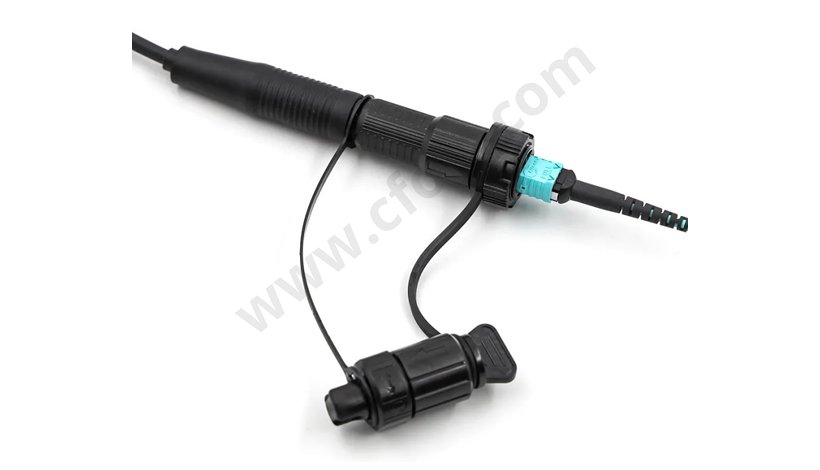

FTTA Mini/MPO/MTP® H Hardened Outdoor Waterproof IP67 cable Assemblies
Mini/MPO/MTP® H Hardened Outdoor IP67 Waterproof Cable Assemblies Our Mini/MPO/MTP® H Hardened IP67 Waterproof Cable Assemblies are engineered for harsh outdoor environments. Designed to meet IP67 protection standards, these cables offer excellent resistance to water, dust, salt mist, vibration, and shock, making them ideal for FTTA, FTTH, industrial, aerospace, and defense applications.
Feature
- Available for standard or low loss MPO/MTP® interface
- Bayonet locking design with IP67 sealing
- Highly customizable configurations
- Designed with protective housing, which fulfills IP67 environmental sealing.
- Mechanical performance: IEC 61754-7 standard.
- RoHS and REACH materials compliant.
- Provide the ultimate “plug and play” solution for durable and reliable service connection
Applications
- Multi-purpose Outdoor.
- For connection between distribution box and RRH.
- Deployment in Remote Radio Head cell tower applications.
- Data communication network
- High density architectures
Products Details
- Technical Parameters
- FIBER CABLE OPTIONS
- CONNECTOR OPTIONS
- POLARITY
| Connector A | Mini/MPO/ MTP® | Connector B | Mini/MPO/MTP®, Mini/SC/LC |
| Fiber Mode | OS2 9/125μm, OM3 OM4 50/125μm | Wavelength | 1310/1550nm, 850/1300nm |
| Glass Fiber | Corning, YOFC | Fiber Grade | OS2, OM3, OM4 |
| MPO/MTP Connector IL | 0.55dB Max | MPO/MTP Connector RL | ≥30dB |
| Cable Jacket | LSZH | Fiber Count | 8-24 Fibers |
| Jacket OD | 5.0±0.2 mm 7.0±0.2 mm | Minimum Bending Radius (Long/Short Term) | 10D/20D |
| Allowable Crush Load(Long/Short Term) | 300/800N | Tensile Strength(Long/Short Term) | 250/600N |
| Storage Temperature | -40 to +85°C | Operating Temperature | -10 to +70°C |
| Applied Environment | Outdoor | |||
| Fiber Cable Type | Distribution cable / Armored Cable | |||
| Outer Diameter(OD) | 5.0mm / 7.0mm / Customized | |||
| Fiber Count(F) | 2F/ 4F / 8F / 12F / 16F / 24F / 36F / 48F / 72F / 96F / 144F / 288F/ Customized | |||
| Fiber Mode | SM: | G652D/ G675A1/ G657A2/ G657B3 | MM: | OM1/ OM2/ OM3/ OM4/ OM5 |
| Jacket Color | Black / Customized | |||
| Jacket Material | LSZH / TPU / PE / HDPE | |||
| Fire Rating | OFNR OPNP B1ca B2ca | Cca Dca Eca_ Fca | ||

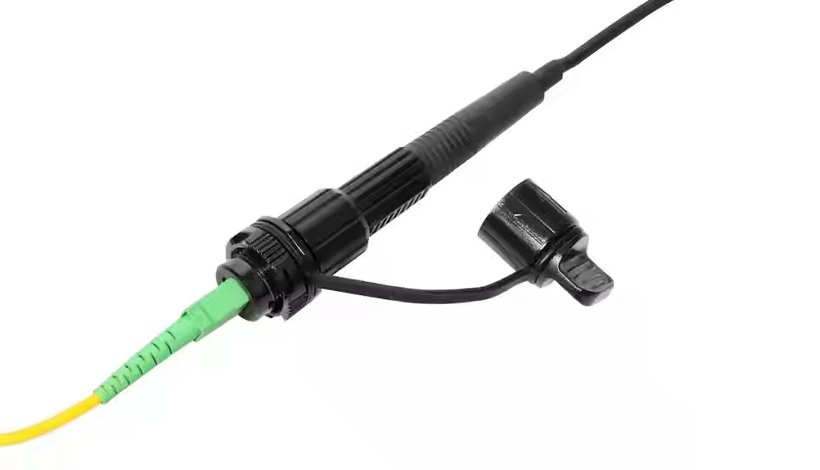

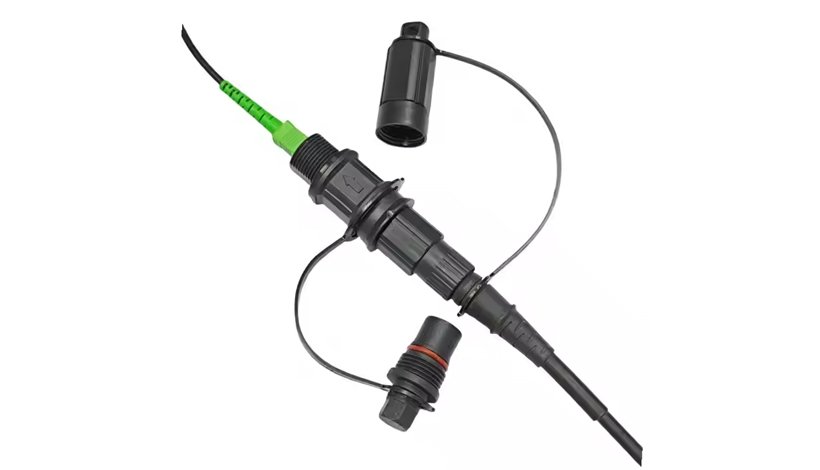

| Connector Type (End A&End B) | Mini/MPO/MTP®, Mini/SC/LC |
| MPO Connector Brand | USCONEC / SENKO / NISSIN / SUNCALL / Made in China |
| MPO Connector | Male (Pinned) / Female( Pinless) |
| Physical Contact | (EndA) Flat PC—APC(8°) / (EndB) Flat PC —APC(8°) |
| Optical Performance | Premium / Elite / Low Loss / Standard Loss |
| Breakout Length(mm)* | 300 / 500 / Customized |
| Pulling | NA / With Mesh / With Corrugated Pipe |
| *Please work with our engineering team for more details | |
| End A | Type A | Type B | Type C |
| End B | Type A | Type B | Type C |
| Please work with our engineering team for more details | |||
