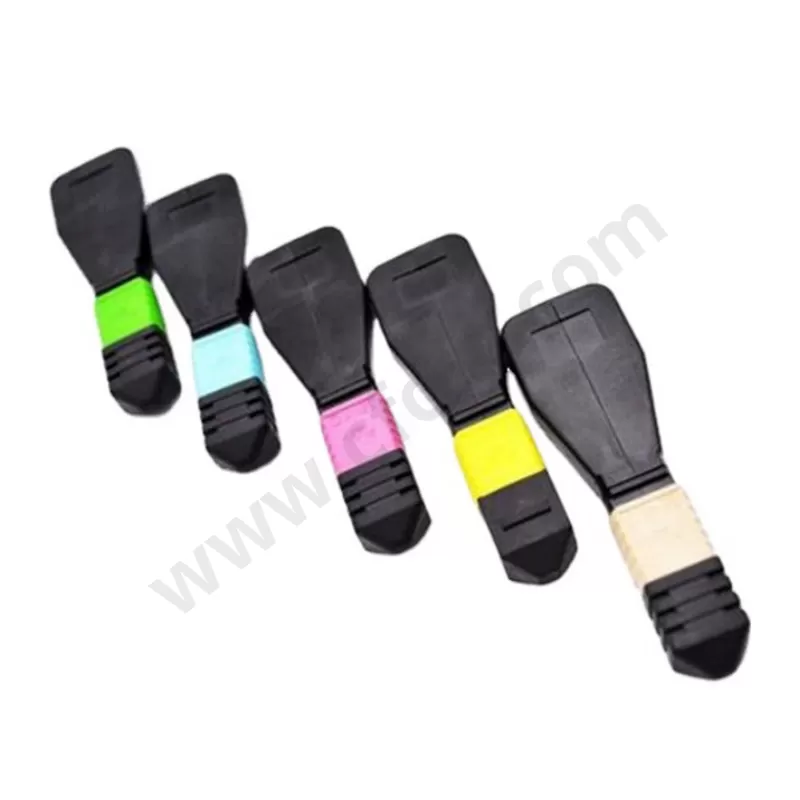

MPO loopback test, a signal is sent from one end of a fiber link and then looped back to the source through a specific device . This allows for the testing of signal transmission and reception, as well as checking for any faults or issues in the fiber optical route.
MPO loopback can help identify problems such as broken fibers, incorrect connections, or faulty equipment. It is an important tool for network technicians and engineers to ensure the reliable operation of fiber optical network links.
Features
Available in Single Mode , Multimode
Standard lnsertion Loss: SM<1.0dB&MM<1.0dB
Return Loss: SM>50dB&MM>25dB
Reliable PIN positing testing for Male/Female PIN
Efficient quick verification of the functionality of fiber optic links
High-density testing capability
Cost-effective
Easy to use
Parameters
| Fiber Connector | MPO / MTP® | Type Face | Female, APC/UPC |
| Fiber Mode | SM, MM | Fiber Count | 8 / 12 / 24 Fibers |
| Insertion loss | MM(BIF)≤1.2dB, SM(G.657.A2)≤1.5dB) | Return Loss | MM>25dB SM>50dB |
| Jacket Material | PEI | Insert-pull test | 50times, IL<0.5dB |
| Size | 80mm*10mm | Operating Temperature | -40 to 75°C |
Applications
Fiber optic network equipment.
Data Center Infrastructure
Optical system access network
Storage Area Network
40G and 100Gbps Fiber Network
High density architectures
