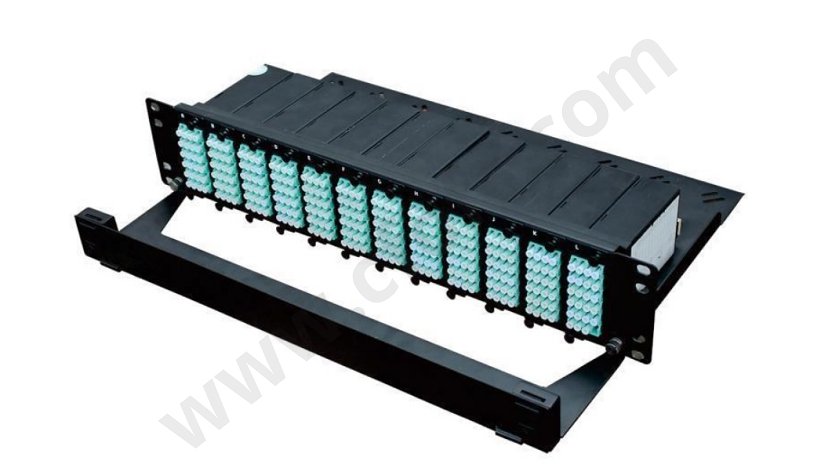

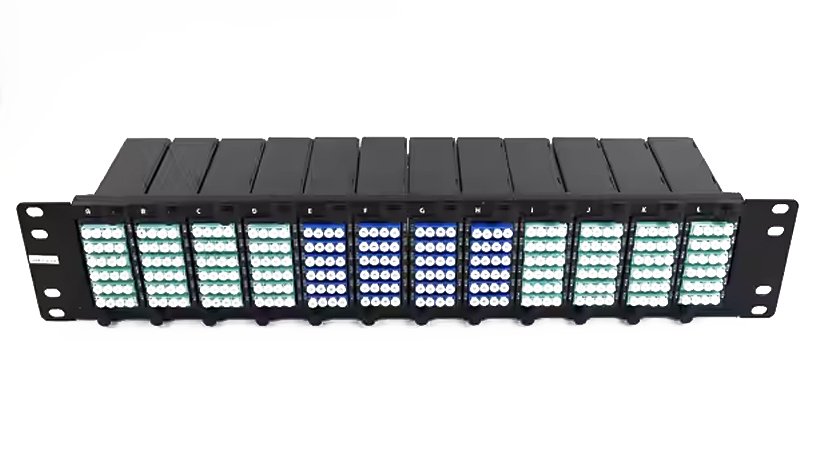

Ultra-High Density 19" Rack Mount MPO Wiring System 12 Cassettes 24 LC
CF-2U-288 is ultra-high density system has a maximum capacity of twelve 24F modules installable (per 2U), that allows multiple fiber connections to be quickly and efficiently installed and maintained, while supporting regular moves, adds and changes.
Feature
- High efficient Removable modular design
- Each module can accommodate 24 LC or 12 SC fiber connectors and transfer to MTP/MPO interface standards.
- Standard 19-inch width rack mounted installation

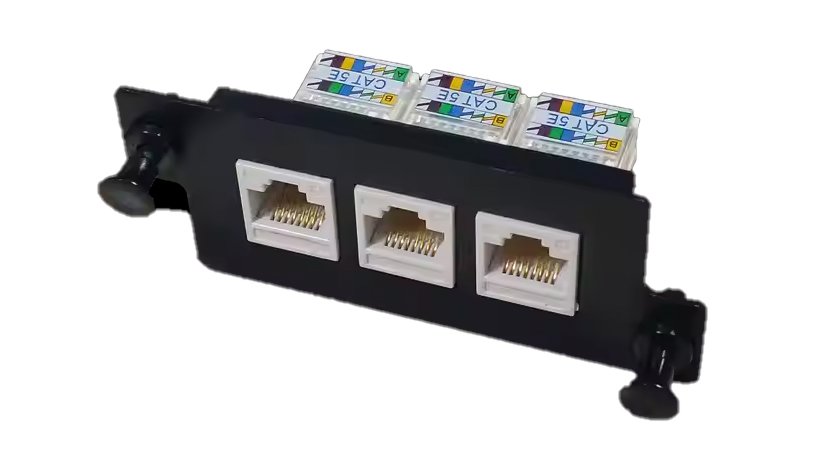

- Diversified module interface and well supporting standard LC /SC , as well as RJ45 network cables
- High density: 1U up to 120 port LC connection, and 2U 288 LC
- High Flexibility of MTP/MPO/LC patching or pigtails splicing
- Light weight, easy installation and maintenance
- Customized color and silk screen LOGO available
Applications
- Fiber channel
- Data communication application
- Data center infrastructure
- Storage area network (SAN)
- 10G/40G/100G Ethernet standard interface
Products Details
- Parameters
- Order Guide
| Executive standard | YD/T788 optical distribution frame |
| Material | SPCC (Cold-Roll Steel Sheets) |
| Working temperature | – 5C ~ + 40C |
| Storage temperature | – 25C ~ + 55C |
| Salt spray test | 72 hours |
| Relative humidity | ≤95% (at +40C) |
| Atmospheric pressure | 76- 106kpa |
| Withstand voltage level | ≤3000V (DC) |
| P/N | Size (mm) | Max. Fibers | Pack Size | Color | Accessories |
| CF-2U288 | 436x 335x 2U | 144 LC | 1pc per inner box 2pcs per outer box | Black | Cable Ties, Screw & Nuts Velcro strips |
