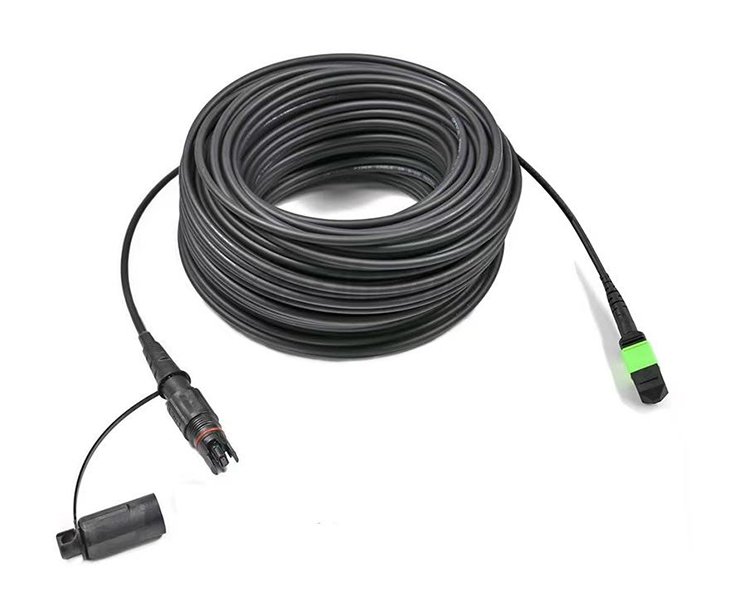

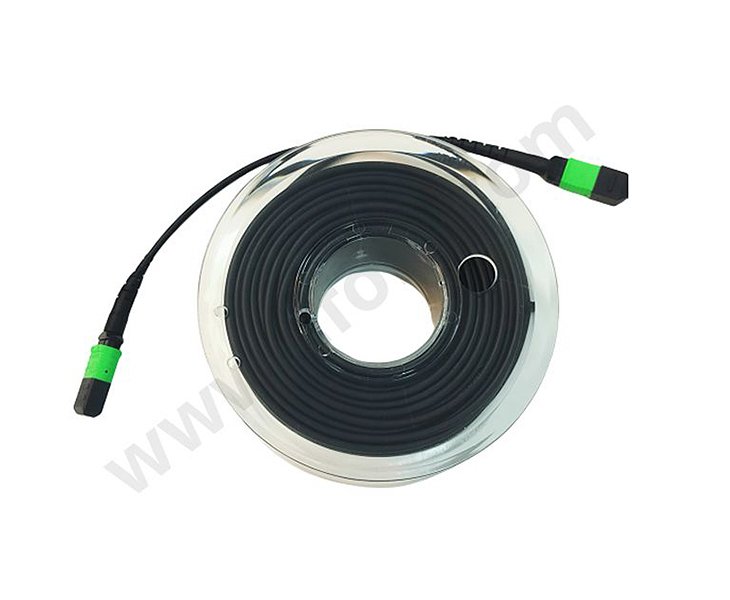

16F OS2 Single Mode MPO MTP Trunk Cable
Feature
- USCONEC; SENKO; NISSIN; SUNCALL; Chinese brandDifferent MT inserts available (Base-8, Base-12,Base-16, Base-24)Color-Coded Connector Boots for Easy Identification
Corning ClearCurve® YOFC Fiber with 7.5mm Min. Bend Radius
Available OFNR、OFNP、CPR(B1ca/B2ca/Cca/Dca/Eca)
Available in single sheath (2.0mm to 3.0mm, typically overall length ≤15m) and double sheath (4.5mm to 5.5mm)
RoHS2 Certification
Applications
HPC(High-Performance Computing)
- Datacom
- DC(Data Center)& Hyperscale DC
- LAN and SAN Backbone Network
- 10G to 10G inter-connect/40G to 40G inter-connect/100G to 100G inter-connect of Base-12 or Base-24
- 800G QSFP-DD/OSFP DR8 and 800G OSFP XDR8 of Base-16
Products Details
- Technical Parameters
- MPO Connector Guide
- MPO Cable Guide
- MPO Polarity
| Connector A | MTP® Female (Pinless) | Connector B | MPO Female (Pinless) |
| Polish Type | UPC to UPC | Glass Fiber | Corning Clear Curve® |
| Fiber Mode | OS2 SMF 9/125μm | Wavelength | 850/1300nm |
| Fiber Count | 16 Fibers | Polarity | Type B |
| Cable Outside Diameter(OD) | 3.0mm-17.3mm | Cable Jacket | Plenum(OFNP) |
| Min.Bend Radius(Optical Fiber) | 7.5mm | Min.Bend Radius (Fiber Cable) | 20/10D(Dynamic/Static) |
| Connector Durablity | 500 times | Tensile Strength(Long/ShortTerm) | 80/240N |
| Insertion Loss | 0.35dB Max(0.15dB Typ.) | Return Loss | ≥20dB |
| Attenuation at 850nm | ≤2.3dB/km | Attenuation at1300nm | ≤0.6dB/km |
| Operating Temperature | -10 to 70℃(14 to 158F) | Storage Temperature | -40 to 85℃ |
| Glass Fiber | Corning, YOFC | Operating Temperature | -10 to +70°C |
