MTP/MPO trunks are compact, high-density fiber assemblies designed for high-demand applications. Supporting up to 100G, they connect equipment and interlink modules or panels in data centers. Available in Standard and Elite versions to meet varying power budget needs.

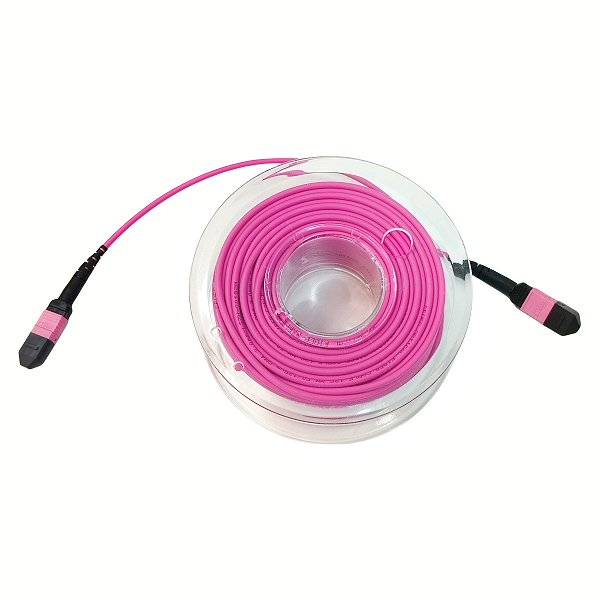

OM4 Multimode Trunk Cable 12F LSZH Magenta
Feature
- USCONEC; SENKO; NISSIN; SUNCALL; Chinese brand
- Different MT inserts available (Base-8, Base-12,Base-16, Base-24)
- Color-Coded Connector Boots for Easy Identification
- Corning ClearCurve® YOFC Fiber with 7.5mm Min. Bend Radius
- Available OFNR、OFNP、CPR(B1ca/B2ca/Cca/Dca/Eca)
- Available in single sheath (2.0mm to 3.0mm, typically overall length ≤15m) and double sheath (4.5mm to 5.5mm)
- RoHS2 Certification
Applications
HPC(High-Performance Computing)
- Datacom
- DC(Data Center)& Hyperscale DC
- LAN and SAN Backbone Network
- 10G to 10G inter-connect/40G to 40G inter-connect/100G to 100G inter-connect of Base-12 or Base-24
- 800G QSFP-DD/OSFP DR8 and 800G OSFP XDR8 of Base-16
Products Details
- Technical Parameters
- FIBER CABLE OPTIONS
- CONNECTOR OPTIONS
- Polarity
| Connector A | MTP® Female (Pinless) | Connector B | MPO Female (Pinless) |
| Polish Type | UPC to UPC | Glass Fiber | Corning Clear Curve® |
| Fiber Mode | OS2 SMF 9/125μm | Wavelength | 850/1300nm |
| Fiber Count | 24 Fibers | Polarity | Type B |
| Cable Outside Diameter(OD) | 3.0mm-17.3mm | Cable Jacket | Plenum(OFNP) |
| Min.Bend Radius(Optical Fiber) | 7.5mm | Min.Bend Radius (Fiber Cable) | 20/10D(Dynamic/Static) |
| Connector Durablity | 500 times | Tensile Strength(Long/ShortTerm) | 80/240N |
| Insertion Loss | 0.35dB Max(0.15dB Typ.) | Return Loss | ≥20dB |
| Attenuation at 850nm | ≤2.3dB/km | Attenuation at1300nm | ≤0.6dB/km |
| Operating Temperature | -10 to 70℃(14 to 158F) | Storage Temperature | -40 to 85℃ |
| Glass Fiber | Corning, YOFC | Operating Temperature | -10 to +70°C |
| Applied Environment | Indoor/Outdoor | |||
| Fiber Cable Type | Mini cable / Loose tube cable / Distribution cable / Armored loose tube cable | |||
| Outer Diameter(OD) | 2.0mm / 3.0mm / 4.2mm / 5.0mm / 6.0mm / 8.5mm / 10.0mm / 12.5mm / Customized | |||
| Fiber Count(F) | 8F / 12F / 16F / 24F / 36F / 48F / 72F / 96F / 144F / 288F/ Customized | |||
| Fiber Mode | SM: | G652D/ G675A1/ G657A2/ G657B3 | MM: | OM1/ OM2/ OM3/ OM4/ OM5 |
| Jacket Color | Yellow / Lime Green / Aqua / Black / Erika Violet / Customized | |||
| Jacket Material | PVC / LSZH / TPU / PE / HDPE | |||
| Fire Rating | OFNR OPNP B1ca B2ca | Cca Dca Eca_ Fca | ||
| Connector Type (End A&End B) | MTP/MPO Base8/ MTP/MPO Base12/ MTP/MPO Base16/ MTP/ MPO Base24 / Customized |
| Connector Brand | USCONEC / SENKO / NISSIN / SUNCALL / Made in China |
| Connector Mode | Male (Pinned) / Female( Pinless) |
| Physical Contact | (EndA) Flat PC—APC(8°) / (EndB) Flat PC —APC(8°) |
| Optical Performance | Premium / Elite / Low Loss / Standard Loss |
| Breakout Length(mm)* | 300 / 500 / Customized |
| Pulling | NA / With Mesh / With Corrugated Pipe |
| *Please work with our engineering team for more details | |
| End A | Type A | Type B | Type C |
| End B | Type A | Type B | Type C |
| Please work with our engineering team for more details | |||
Related Products
Non-Contact MPO OM3 Patch cordThe fiber ends don’t touch, but use a special design to transmit signals efficiently. This avoids issues with multi-fiber connectors not aligning perfectly and offers better resistance to dust and dirt.
MultimodeTrunk cable 12 Fibers OFNR OFNP Lime GreenMTP/MPO trunks are compact, high-density fiber connectors used in data centers for up to 100G applications. They connect equipment or link modules and panels, with Standard and Elite versions available to meet different power budget needs.

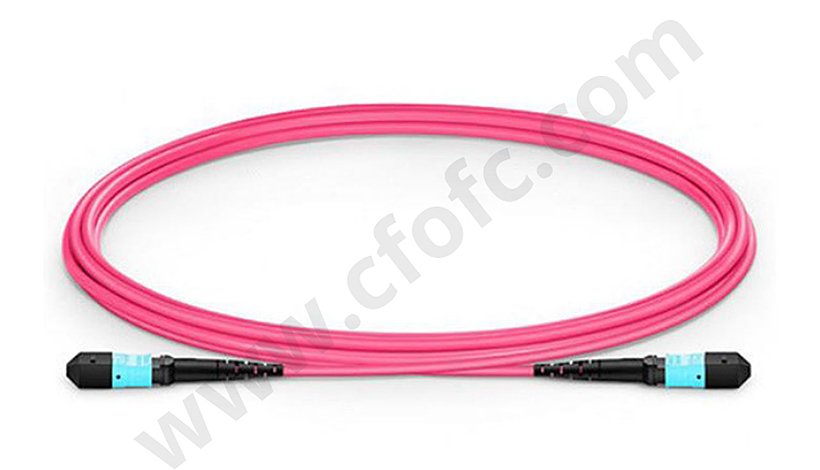

OM4 MultimodeTrunk Cable 12F LSZH Magenta
