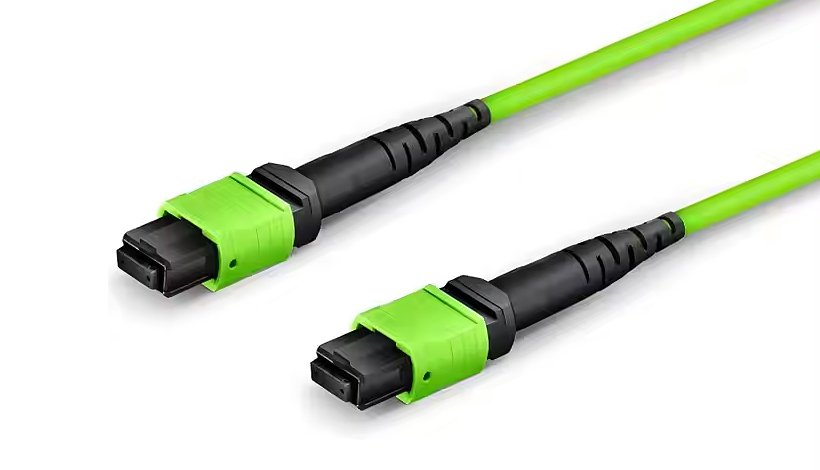

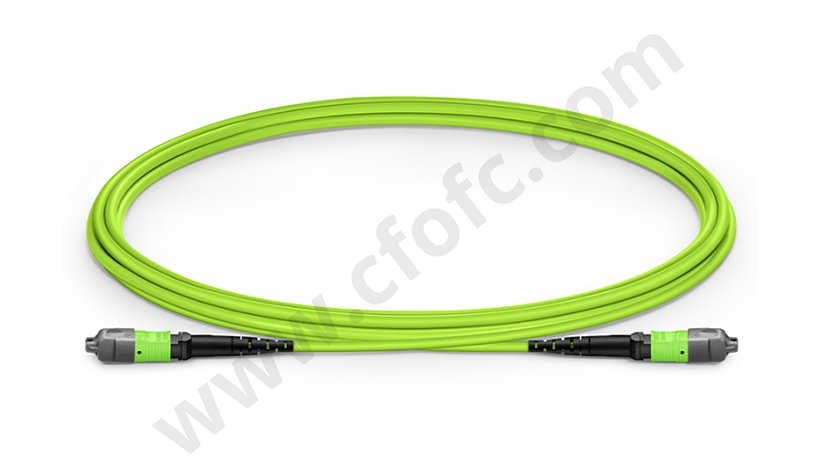

OM5 Multimode Trunk Cable 12 Fibers OFNR OFNP Lime Green
Feature
- USCONEC; SENKO; NISSIN; SUNCALL; Chinese brand
- Different MT inserts available (Base-8, Base-12,Base-16, Base-24)
- Color-Coded Connector Boots for Easy Identification
- Corning ClearCurve® YOFC Fiber with 7.5mm Min. Bend Radius
- Available OFNR、OFNP、CPR(B1ca/B2ca/Cca/Dca/Eca)
- Available in single sheath (2.0mm to 3.0mm, typically overall length ≤15m) and double sheath (4.5mm to 5.5mm)
- RoHS2 Certification
Applications
HPC(High-Performance Computing)
- Datacom
- DC(Data Center)& Hyperscale DC
- LAN and SAN Backbone Network
- 10G to 10G inter-connect/40G to 40G inter-connect/100G to 100G inter-connect of Base-12 or Base-24
- 800G QSFP-DD/OSFP DR8 and 800G OSFP XDR8 of Base-16
Products Details
- Technical Parameters
- FIBER CABLE OPTIONS
- CONNECTOR OPTIONS
- Polarity
| Connector A | MTP® Female (Pinless) | Connector B | MPO Female (Pinless) |
| Polish Type | UPC to UPC | Glass Fiber | Corning Clear Curve® |
| Fiber Mode | OM5 MMF 50/125μm | Wavelength | 850/1300nm |
| Fiber Count | 8 Fibers | Polarity | Type B |
| Cable Outside Diameter(OD) | 3.0mm-17.3mm | Cable Jacket | Plenum(OFNP) |
| Min.Bend Radius(Optical Fiber) | 7.5mm | Min.Bend Radius (Fiber Cable) | 20/10D(Dynamic/Static) |
| Connector Durablity | 500 times | Tensile Strength(Long/ShortTerm) | 80/240N |
| Insertion Loss | 0.35dB Max(0.15dB Typ.) | Return Loss | ≥20dB |
| Attenuation at 850nm | ≤2.3dB/km | Attenuation at 1300nm | ≤0.6dB/km |
| Operating Temperature | -10 to 70℃(14 to 158F) | Storage Temperature | -40 to 85℃ |
| Glass Fiber | Corning, YOFC | Operating Temperature | -10 to +70°C |
| Applied Environment | Indoor/Outdoor | |||
| Fiber Cable Type | Mini cable / Loose tube cable / Distribution cable / Armored loose tube cable | |||
| Outer Diameter(OD) | 2.0mm / 3.0mm / 4.2mm / 5.0mm / 6.0mm / 8.5mm / 10.0mm / 12.5mm / Customized | |||
| Fiber Count(F) | 8F / 12F / 16F / 24F / 36F / 48F / 72F / 96F / 144F / 288F/ Customized | |||
| Fiber Mode | SM: | G652D/ G675A1/ G657A2/ G657B3 | MM: | OM1/ OM2/ OM3/ OM4/ OM5 |
| Jacket Color | Yellow / Lime Green / Aqua / Black / Erika Violet / Customized | |||
| Jacket Material | PVC / LSZH / TPU / PE / HDPE | |||
| Fire Rating | OFNR OPNP B1ca B2ca | Cca Dca Eca_ Fca | ||
| Connector Type (End A&End B) | MTP/MPO Base8/ MTP/MPO Base12/ MTP/MPO Base16/ MTP/ MPO Base24 / Customized |
| Connector Brand | USCONEC / SENKO / NISSIN / SUNCALL / Made in China |
| Connector Mode | Male (Pinned) / Female( Pinless) |
| Physical Contact | (EndA) Flat PC—APC(8°) / (EndB) Flat PC —APC(8°) |
| Optical Performance | Premium / Elite / Low Loss / Standard Loss |
| Breakout Length(mm)* | 300 / 500 / Customized |
| Pulling | NA / With Mesh / With Corrugated Pipe |
| *Please work with our engineering team for more details | |
| End A | Type A | Type B | Type C |
| End B | Type A | Type B | Type C |
| Please work with our engineering team for more details | |||
