Ruggedized Duplex Armoured Flat Cable G652D G657A1 G657A2

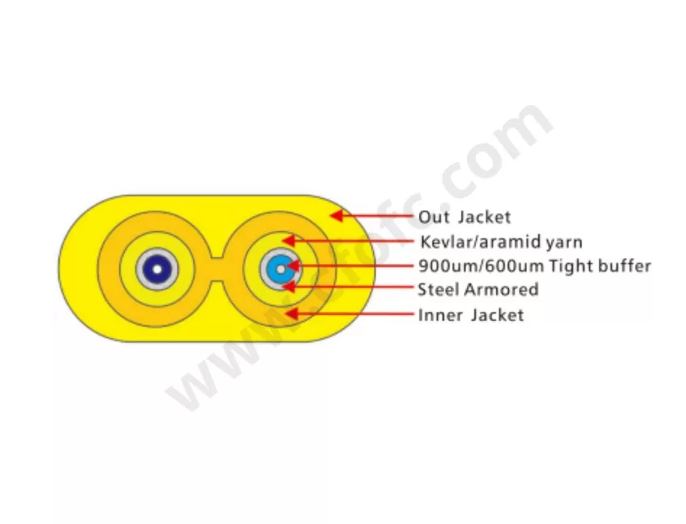

GJSJBV Duplex Armoured Flat Cable use 600um & 900um tight buffer fiber, steel tube protect, reinforcingsteel-wire braiding(Kevlar/aramid yarn), flame-retardant jacket. High indentation strength, high tensilestrength, gopher protected, small diameter, flexibility and easy bend
Feature
- Kevlar yarn steel armored flexible or out sheath independent strength member.Excellent mechanical and enviromental performance
- Single -cable with 0.6mm or 0.9mm tight buffer
- Two single-fiber as basic unit,flast twin configuration
Applications
1. Adopted to indoor distribution
2. As pigtail of communication equipment
3. Suitable for communication equipment served Can be installed conveniently and perated simply
Products Details
- Product Parameters
- Fiber Optic Cable Options
- Fiber Optic Cable Jacket & Diameter Options
- Fiber Optic Cable Core Type Options
| Cable type | OD(mm) | Nominal Weight (kg/km) | Tensile Strength(N) | Crush Resistance (N/100MM) | Bending Radius(mm) | |||
| Short-term | Long-term | Short-term | long-term | Dynamic | Static | |||
| GJSJBV-2xn | (3.0±0.2)*(5.4±0.2) | 35.5 | 1000 | 300 | 2000 | 1000 | 20D | 15D |
| GJSJBV-2xn | (3.8±0.2)*(7.0±0.2) | 38.5 | 1000 | 300 | 2000 | 1000 | 20D | 15D |
| Storage/Working temperature(‘C) -20~+60 | ||||||||
Related Products

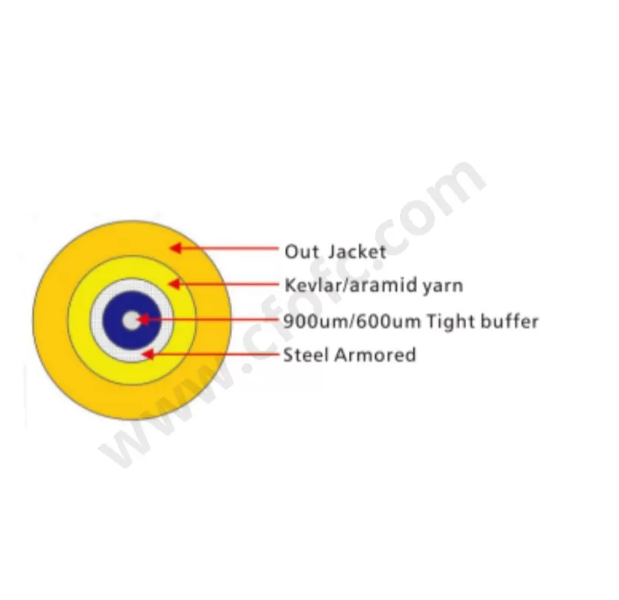

Rodent protected 3.0mm/ 5.0mm SM G657A1 Armored Optical Cable LSZH PE Outer JacketGJSJV Simplex Armoured Round Cable use 600um & 900um tight buffer fiber, steel tube protect, reinforcingsteel-wire braiding(Kevlar/aramid yarn), flame-retardant jacket. High indentation strength, high tensilestrength, gopher protected, small diameter, flexibility and easy bend.
Simplex Armoured Round Cable Singlemode G652DGJSJV Simplex Armoured Round Cable use 600um & 900um tight buffer fiber, steel tube protect, reinforcingsteel-wire braiding(Kevlar/aramid yarn), flame-retardant jacket. High indentation strength, high tensilestrength, gopher protected, small diameter, flexibility and easy bend.

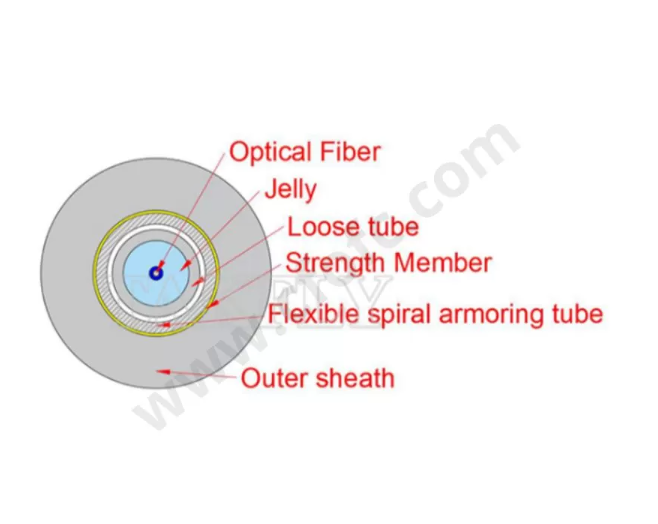

Rodent protected Fiber Optic 3.0mm Simplex Armored Drop CableMulti-purpose cable-armoured cable with family of micro clusters uses extruded flame-retardant family of micro clusters with fiber coating as transmission medium and combine them into the spiral armoured stainless steel tube, which is covered by a layer of full dielectric strength member yarn as support unit. Finally, the cable is completed with a layer of outer sheath with OFNR/OFNP or CPR-DCA/CCA/BCA material.
