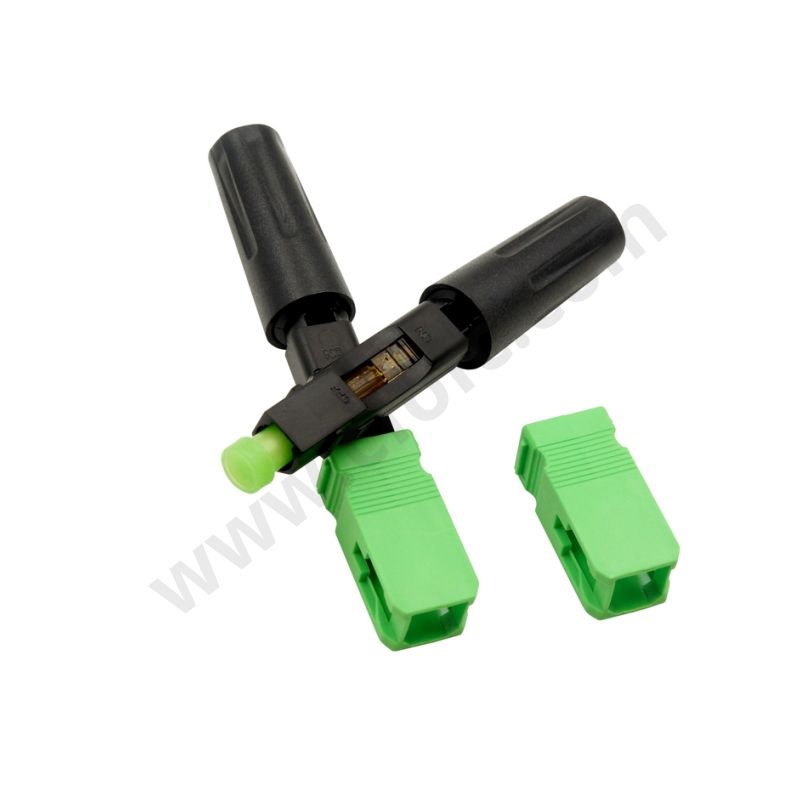

SC/APC Single Mode Fast/Quick Connector
SC/APC Single Mode Fast/Quick Connector is a fiber optic connector with SC interface and APC polishing. It’s for single-mode fiber, enabling fast connection. Used in optical communication and network equipment. Low loss and convenient.
Features
Precise mechanical dimensions
Ceramic core APC, UPC grinding
Low insertion loss, high return loss
Comply standard of IEC61754-4
Adopt standard metal parts.
ROHS compliant
Applications
Connections at the desk for LAN environments
Patch panels
Direct equipment termination
Fiber to the Subscriber (FTTH) applications
Repair/replacement requirements
Equipment test leads
Products Details
- Technical Parameters
| Connector Type | SC | Polishing | APC |
| Ferrule | Ceramic | Fiber Mode | 9/125μm Single mode |
| Cable Diameters | 0.9/2.0/3.0mm | Dimension | 50mm |
| Insertion Loss | ≤0.35dB | Return Loss | ≥50dB |
| Tension Test | 900μm 10N2.0mm 20N3.0mm 50N | Temperature | Storage-40 to 85℃Operating-40to 85℃ |
| Product type | SC/UPC Simplex SM / SC/UPC Simplex SM / SC/UPC Simplex SM / SC/UPC Simplex SM | ||
| MOQ | 1000 | ||
| Price | Negotiable | ||
| Packaging Details | Individual Pack plus outer cartons | ||
| Delivery Time | 5-8 work days | ||
| Supply Ability | 10000pcs per week | ||
| Payment Terms | L/C, T/T | ||
Related Products
SC/APC FTTH drop cable patch cordFTTH drop cable patch cord is specially for FTTH application, it can be used indoor or outdoor to access building to connect the end users’ houses, widely applied in access networks and FTTH indoor cabling. We provide FTTH drop cable with different counts from 1, 2, 4, to 12.

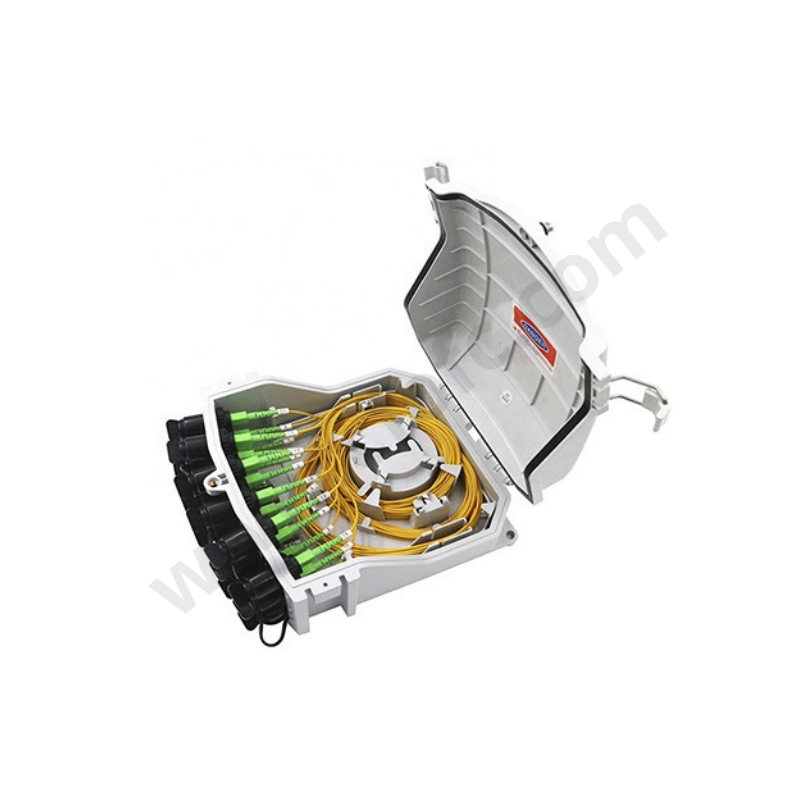

Waterproof 16 Core Fiber Optic Distribution BoxOutdoor IP65 Waterproof 16-Core FTTH Fiber Optic Termination Distribution Box with splitter cassette. This is an aerial-hung fiber optic terminal box equipped with a splitter cassette for loading PLC 1:4, 1:8, 1:16 splitters, facilitating fiber distribution and connection.
