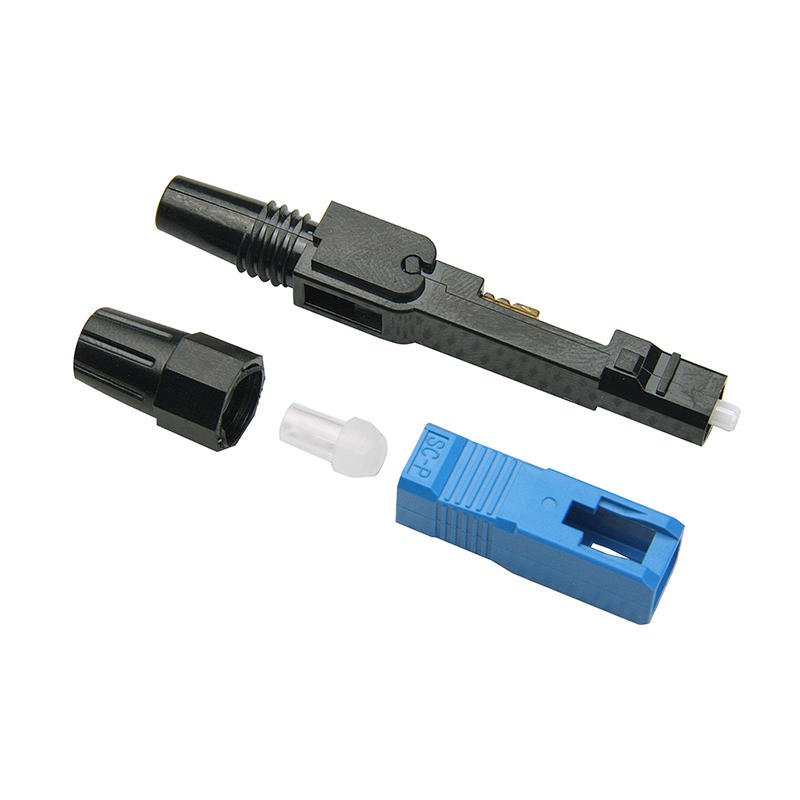

SC/ UPC Single Mode Fast/Quick Connector
The Fast Connector is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing, The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule.
Features
Connections at the desk for LAN environments
Patch panels
Direct equipment termination
Fiber to the Subscriber (FTTH) applications
Repair/replacement requirements
Equipment test leads
Applications
Connections at the desk for LAN environments
Patch panels
Direct equipment termination
Fiber to the Subscriber (FTTH) applications
Repair/replacement requirements
Equipment test leads
Products Details
- Technical Parameters
| Connector Type | SC | Polishing | UPC |
| Ferrule | Ceramic | Fiber Mode | 9/125μm Single mode |
| Cable Diameters | 0.9/2.0/3.0mm | Dimension | 50mm |
| Insertion Loss | ≤0.35dB | Return Loss | ≥50dB |
| Tension Test | 900μm 10N2.0mm 20N3.0mm 50N | Temperature | Storage-40 to 85℃Operating-40to 85℃ |
| Product type | SC/UPC Simplex SM / SC/UPC Simplex SM / SC/UPC Simplex SM / SC/UPC Simplex SM | ||
| MOQ | 1000 | ||
| Price | Negotiable | ||
| Packaging Details | Individual Pack plus outer cartons | ||
| Delivery Time | 5-8 work days | ||
| Supply Ability | 10000pcs per week | ||
| Payment Terms | L/C, T/T | ||
