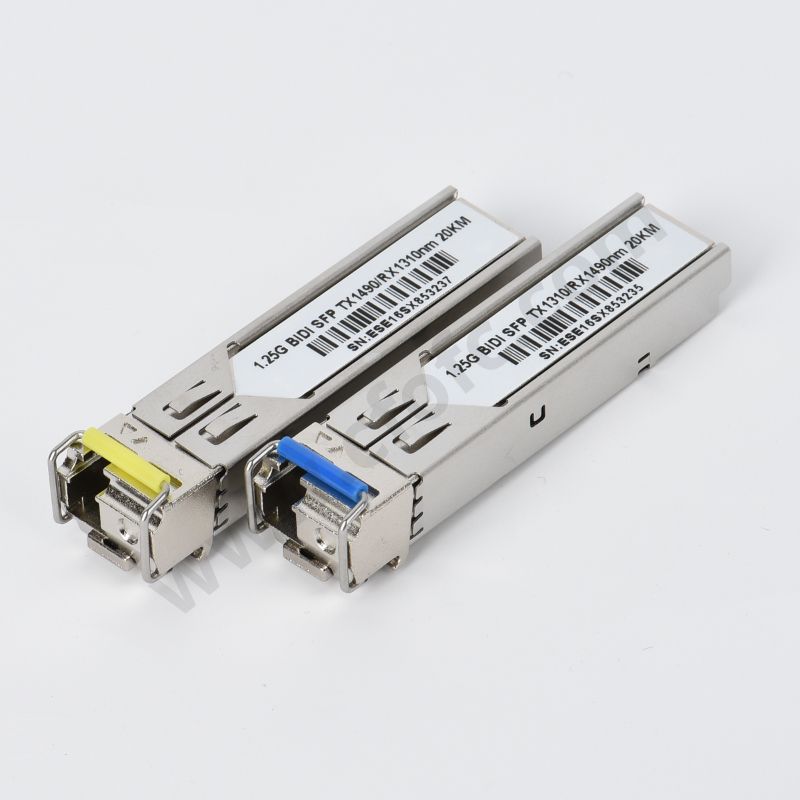

1.25Gbps BIDI SFP Optical Transceiver 20Km
SFP transceiver provides up to 20km of 1000Base-BX throughput over single-mode fiber (SMF) using 1310nm-TX/1550nm-RX wavelengths via LC simplex connectors. This bi-directional unit must be used with another transceiver or network equipment of complementary wavelengths.
Features
Dual data-rate of 1.25Gbps/1.063Gbps operation
1310nm FP laser and PIN photodetector for 20KM transmission
Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
Digital Diagnostic Monitoring: Internal Calibration or External Calibration
Compatible with SONET OC-24-LR-1
Compatible with RoHS
+3.3V single power supply
Operating case temperature range: 0 °C to +70 °C (Commercial) 、-40 °C to +85 °C (Industrial)
Products Details
- Technical Parameters
- Ordering Information
| Form Factor | SFP | Max Data Rate | 1000MbpS |
| Wavelength | 1310nm-TX/1550nm-RX | Max Cable Distance | 20km |
| Connector | Simplex LC | Optical Components | FP BiDi |
| Media | SMF | DOM Support | Yes |
| TX Power | -9 to -3dBm | Receiver Sensitivity | <-20dBm |
| Commercial TemperatureRange | 0 to 70℃(32 to 158℉) | Protocols | Fast Ethernet, Gigabit Fibre Channel, MSACompliant |
