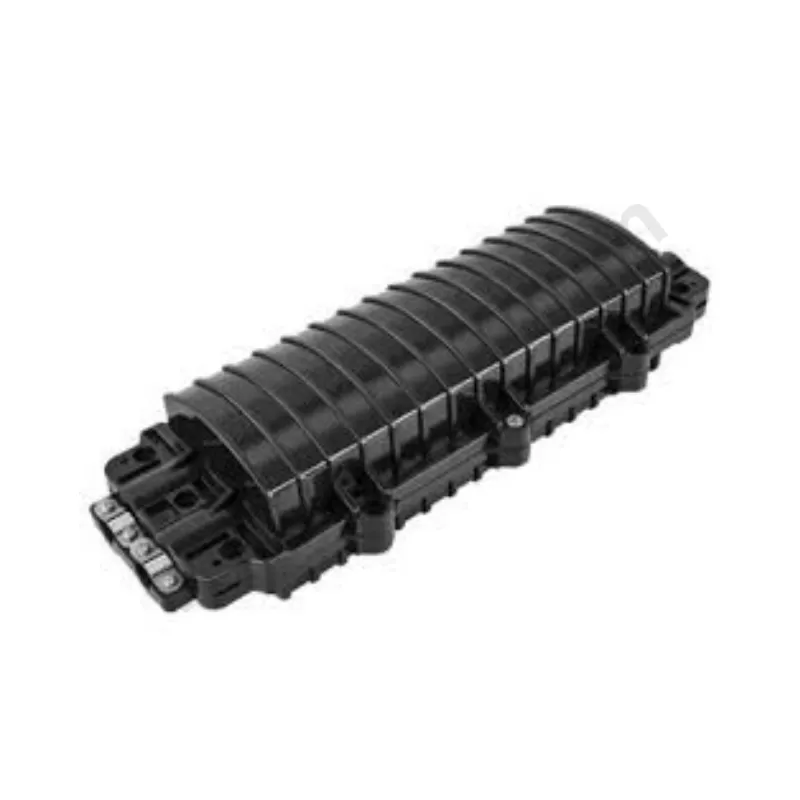

Horizontal fiber optic cable splice box

This optical cable splice closure, a passive device ensuring cable continuity, comprises a splice closure cap, fixtures, sealing elements, and a tray for collecting surplus fibre.

Inquire Now

Products Details

Product Features

Fits cable straight-through, branching & splicing.

For overhead, burial & duct/wall-mounted setups.

Has stackable & removable trays, easy access.

Trays adjustable, suits ribbon & bundle fibres.

Maintains >30mm fibre/cable bend radius.

Parameters

Product	Horizontal fiber optic cable splice box
Protection Level	IP68
Operating Temperature	-40C to+60℃
Storage Temperature	-40C to+70℃
Atmospheric Pressure	70 kPa to 106 kPa
Leak Tightness at Ambient Temperature	100 kPa internal pressure maintained for 24 h
Temperature Cycle	Appearance and leak tightness maintained after 20 temperature cycles(-40℃ to+65°℃)under 60 kPa±5kPa
Pressure Resistance	Able to bear2,000 N/100 mm pressure
Tensile Strength	Able to bear axial tension≥800 N
Bend Resistance	Able to bear bending force of 150N for ten ±45°bending cycles
Service Life	Over 20 years
Standards Compliance	Compliant with Chinese national standards,including YD/T814.1-2004 and YD/T814.2-2005,and intemational standards,including ITUL.13-2003 and UL94

Applications

Telecommunication network

Enterprise network

Cable television

Broadcast network

Highway traffic communication

Urban intelligent transportation

Factory automation

Order Information

Item	Size	Full Capacity		Sealing Method	Cable Ports	Applicable Cable Diameter	Installation Method
Item	H×W×D (mm)	Bundle	Ribbon	Sealing Method	Cable Ports	Applicable Cable Diameter	Installation Method
Horizontal fiber optic cable splice box	474×222×124	96	144	Mechanical seal	2 ingress&2egress	8-16mm	Overheadwall-mounteddirect burial
	388×185×104	96	144		3 ingress&3egress	4 holes:8-13 mm 2 holes:8-16 mm	Overheadwall-mounted
	560×245×180	384	432		8 ingress&8egress	2 holes:2-23 mm 2 holes:2-20 mm 4 holes:4-16 mm 8 holes:8-14 mm
	455×180×120	96	/		2 ingress&2egress	10-17.5mm
	474×201×150	144	432			10-17.5mm
	460×180×108	96	/			7-18mm
