Dome type splice closure 48 72 96 144 core ABS+PC Material fiber optic joint closure Junction Box

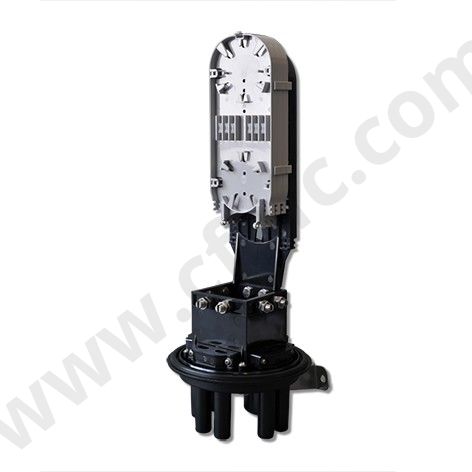

The optical cable splice closure, a vital passive device. Comprises a splice closure cap for protection, fixtures for cable stabilization, sealing components to keep out contaminants, and a tray for excess fiber management. It’s essential for ensuring cable continuity in fiber optic networks, enabling seamless data transmission and safeguarding network integrity.
Features
Fit for cable thru, branch & splice.
Stackable & detachable splice trays, easy access.
Proper fiber layout, bend radius > 30mm everywhere.
Add/remove trays as required, for ribbon/loose fibers.
Ideal for overhead, pole, wall mounts in ducts & manholes.
Applications
FTTH
Data Centers
Metro Networks
Fiber Splice Box
Cable Joint Enclosure
Industrial Automation
Products Details
- Technical Parameters
- Order Information
| Protection Level | IP68 |
| Operating Temperature | -40°C to +60℃ |
| Storage Temperature | -40°C to+70℃ |
| Atmospheric Pressure | 70 kPa to 106 kPa |
| Leak Tightness at Ambient Temperature | 100 kPa internal pressure maintained for 24 h |
| Temperature Cycle | Appearance and leak tightness maintained after 20 temperature cycles (-40°℃ to +65°℃) under 60 kPa ±5 |
| Pressure Resistance | Able to bear 2,000 N/100 mm pressure |
| Tensile Strength | Able to bear axial tension ≥800 N |
| Bend Resistance | Able to bear bending force of 150 N for ten ±45° bending cycles |
| Service Life | Over 20 years |
| Optical Fibre Closure (Dome-type) | Type | H × W x D(mm) | Bundle | Ribbon | Sealing Method | Cable Ports | Applicable Cable Diameter |
| CF-001 | 435×190 | 96 | — | Heat-shrink seal | 1*3 | Branch / 8-16 mm Straight / 8-25 mm | |
| CF-002 | 598×285 | 960 | — | Mechanical seal | 1*8 | Branch / 8-22 mm Straight / 8-23 mm | |
| CF-003 | 450×230 | 144 | 432 | Mechanical sea | 1*4 | Branch / 8-18 mm Straight / 8-18 mm | |
| CF-004 | 520×245 | 96 | — | Mechanical sea | 1*4 | Branch / 5-17.5 mm Straight / 8-17.5 mm | |
| CF-005 | 460×230 | 144 | 432 | Heat-shrink seal | 1*4 | Branch / 7-22 mm Straight / 7-22 mm |
