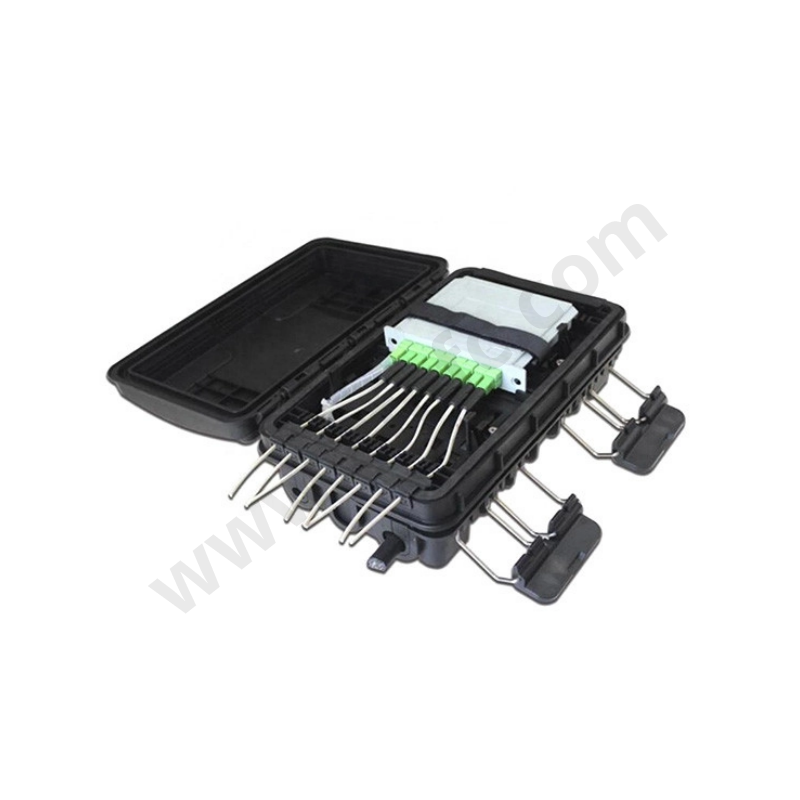

Outdoor IP65 Waterproof 24-Core FTTH Fiber Optic Termination Distribution Box with splitter cassette. This is an aerial-hung fiber optic terminal box equipped with a splitter cassette for loading PLC 1:4, 1:8, 1:16 splitters, facilitating fiber distribution and connection.
Features
ABS material, black. Mechanical sealing, IP65 waterproof.
Two-layer space: upper for PLC 1:4/1:8/1:16 splitters, lower for fiber splicing.
1 pc OST-050 splice tray for max. 24 fiber splicings.
Aerial hanged. 4 ports for φ6-φ8mm cable, 16 for 32mm drop cable. Cable entry without cutting.
Applications
Outdoor fiber network.
Telecom projects.
Industrial sites.
Smart city.
Residential areas.
Products Details
- Technical Parameters
- Order Information
| Production name | Optical Fiber Distribution Box | Certification | CE,ISO,RoHS |
| Capacity | 24F | Material | ABS |
| Adapter Port | Max.12 Sc Simplex Adapters | Application | Outdoor Aerial Hanged |
| Cable Ports | 4 Entry Cable Port for 6-8mm Diameter Cable | Protection Grade | IP65 |
| Adapter Types | FC / Sc / St / LC | Color | White / Black / Customized |
| Dimension | 413.2*180.2*81mm | Transport Package | Carton |
| Origin | China | Packing information | 12pcs per carton |
| Fiber Connector Type | LC/SC/FC/ST/MPO |
| Port number requirement | 1core / 2 ports / 4 ports / 6ports Customized |
| Usage scenario | Indoor/outdoor/dual-purpose for indoor and outdoor |
| Installation method | Wall-mounted / pole-mounted |
| Performance requirements | insertion loss and return loss |
| Design features | Degree of lightness and compactness |
