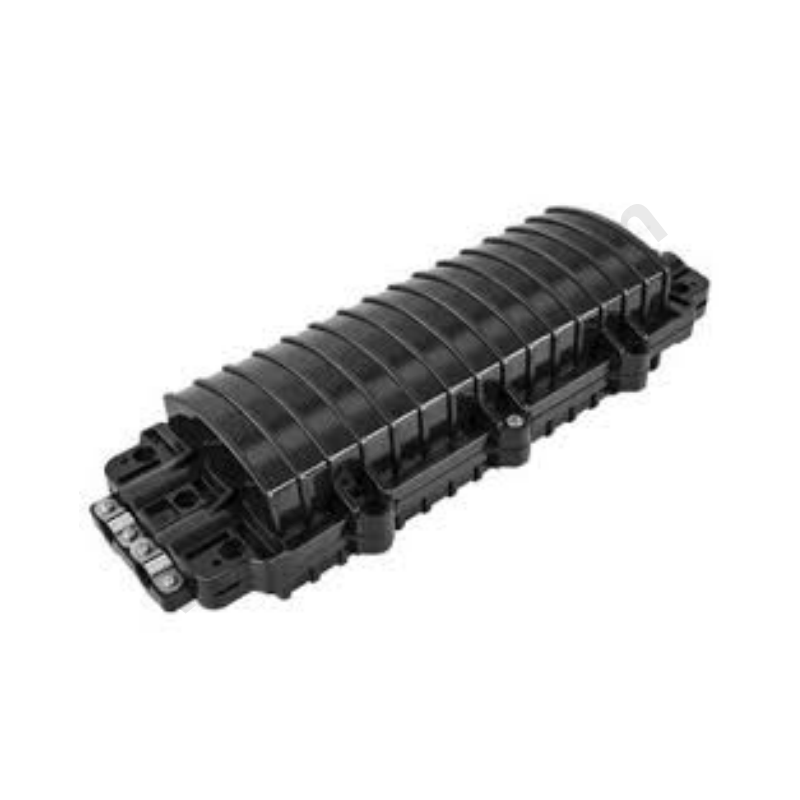

Horizontal fiber optic cable splice box
This optical cable splice closure, a passive device ensuring cable continuity, comprises a splice closure cap, fixtures, sealing elements, and a tray for collecting surplus fibre.
Features
Fits cable straight-through, branching & splicing.
For overhead, burial & duct/wall-mounted setups.
Has stackable & removable trays, easy access.
Trays adjustable, suits ribbon & bundle fibres.
Maintains >30mm fibre/cable bend radius.
Applications
Telecommunication network
Enterprise network
Cable television
Broadcast network
Highway traffic communication
Urban intelligent transportation
Factory automation
Products Details
- Technical Parameters
- Order Information
| Product | Horizontal fiber optic cable splice box |
| Protection Level | IP68 |
| Operating Temperature | -40C to+60℃ |
| Storage Temperature | -40C to+70℃ |
| Atmospheric Pressure | 70 kPa to 106 kPa |
| Leak Tightness at Ambient Temperature | 100 kPa internal pressure maintained for 24 h |
| Temperature Cycle | Appearance and leak tightness maintained after 20 temperature cycles(-40℃ to+65°℃)under 60 kPa±5kPa |
| Pressure Resistance | Able to bear2,000 N/100 mm pressure |
| Tensile Strength | Able to bear axial tension≥800 N |
| Bend Resistance | Able to bear bending force of 150N for ten ±45°bending cycles |
| Service Life | Over 20 years |
| Standards Compliance | Compliant with Chinese national standards,including YD/T814.1-2004 and YD/T814.2-2005,and intemational standards,including ITUL.13-2003 and UL94 |
| Item | Size | Full Capacity | Sealing Method | Cable Ports | Applicable Cable Diameter | Installation Method | |
| H×W×D (mm) | Bundle | Ribbon | |||||
| Horizontal fiber optic cable splice box | 474×222×124 | 96 | 144 | Mechanical seal | 2 ingress&2egress | 8-16mm | Overheadwall-mounteddirect burial |
| 388×185×104 | 96 | 144 | 3 ingress&3egress | 4 holes:8-13 mm 2 holes:8-16 mm | Overheadwall-mounted | ||
| 560×245×180 | 384 | 432 | 8 ingress&8egress | 2 holes:2-23 mm 2 holes:2-20 mm 4 holes:4-16 mm 8 holes:8-14 mm | |||
| 455×180×120 | 96 | / | 2 ingress&2egress | 10-17.5mm | |||
| 474×201×150 | 144 | 432 | |||||
| 460×180×108 | 96 | / | 7-18mm | ||||
