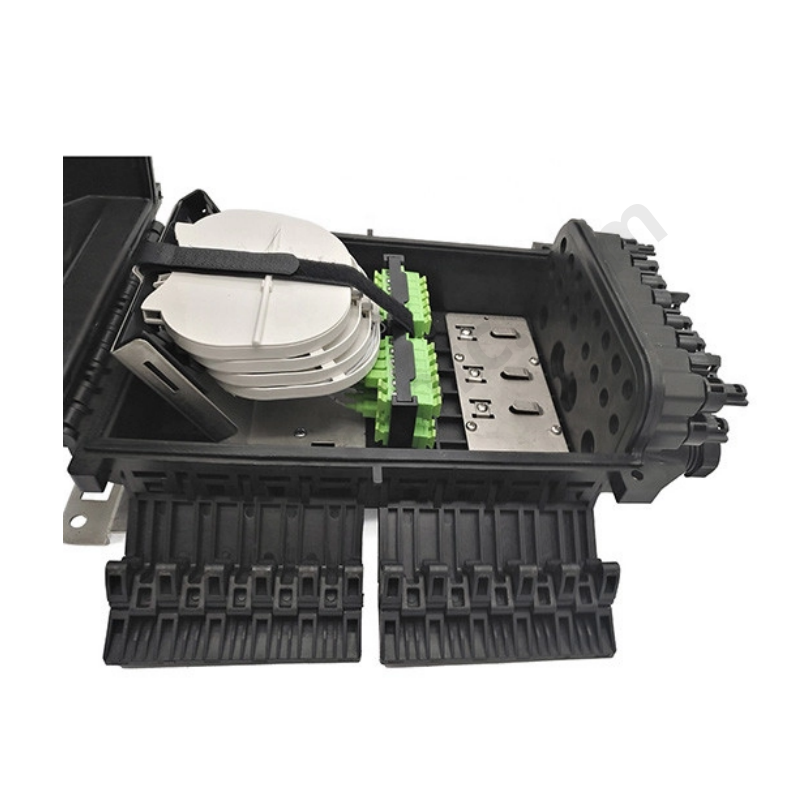

IP68 Fiber Optic Cable Splice Enclosure
It is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile, it provides solid protection and management for the FTTx network building.
Features
ABS material, black. Mechanical sealing, IP68 waterproof.
Two-layer space: upper for PLC 1:4/1:8/1:16 splitters, lower for fiber splicing.
Aerial hanged. 4 ports for φ6-φ8mm cable, 16 for 32mm drop cable. Cable entry without cutting.
Applications
Outdoor fiber network.
Telecom projects.
Industrial sites.
Smart city.
Residential areas.
Products Details
- Technical Parameters
- Order Information
| Production name | Optical Fiber Distribution Box | Certification | CE,ISO,RoHS |
| Capacity | 16F/24F | Material | ABS |
| Adapter Port | Max.48 Sc Simplex Adapters | Application | Outdoor Aerial Hanged |
| Cable Ports | 4 Entry Cable Port for 6-8mm Diameter Cable | Protection Grade | IP68 |
| Adapter Types | FC / Sc / St / LC | Color | White / Black / Customized |
| Weight | 4.5-5kg | Transport Package | Carton |
| Origin | China | Packing information | 12pcs per carton |
| Fiber Connector Type | LC/SC/FC/ST/MPO |
| Port number requirement | 1core / 2 ports / 4 ports / 6ports Customized |
| Usage scenario | Indoor/outdoor/dual-purpose for indoor and outdoor |
| Installation method | Wall-mounted / pole-mounted |
| Performance requirements | insertion loss and return loss |
| Design features | Degree of lightness and compactness |
