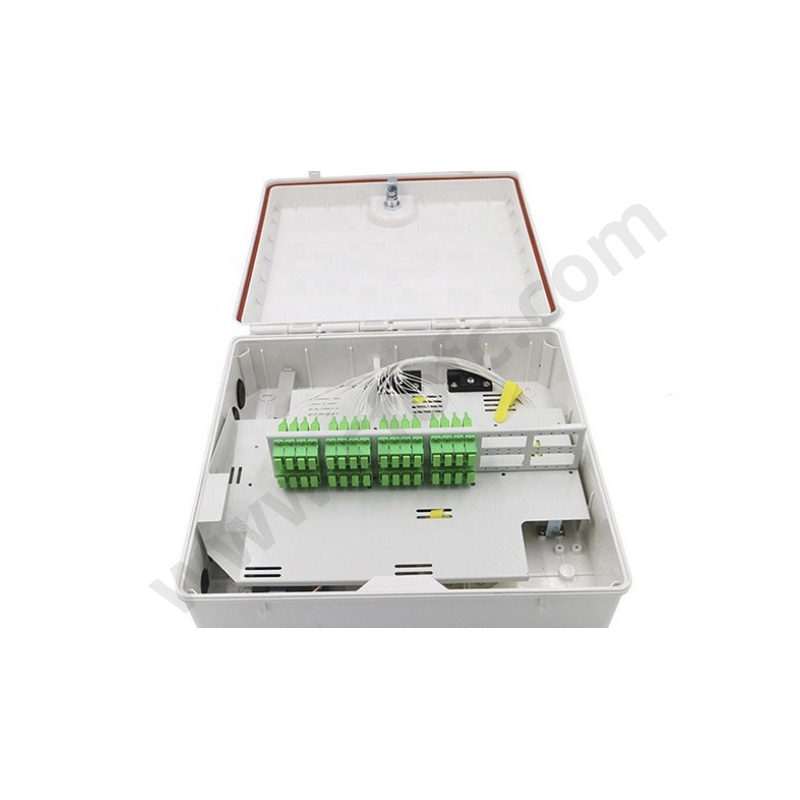

Outdoor Fiber Optic Terminal Box 24 48 Core FTTH Fiber Optic Distribution Box
Outdoor IP65 Waterproof 48-Core FTTH Fiber Optic Termination Distribution Box with splitter cassette. This is an aerial-hung fiber optic terminal box equipped with a splitter cassette for loading PLC 1:4, 1:8, 1:16 splitters, facilitating fiber distribution and connection.
Features
ABS material, black. Mechanical sealing, IP65 waterproof.
Two-layer space: upper for PLC 1:4/1:8/1:16 splitters, lower for fiber splicing.
Aerial hanged. 4 ports for φ6-φ8mm cable, 16 for 32mm drop cable. Cable entry without cutting.
Applications
Outdoor fiber network.
Telecom projects.
Industrial sites.
Smart city.
Residential areas.
Products Details
- Technical Parameters
- Order Information
| Production name | Optical Fiber Distribution Box | Certification | CE,ISO,RoHS |
| Capacity | 48F | Material | ABS |
| Adapter Port | Max.48 Sc Simplex Adapters | Application | Outdoor Aerial Hanged |
| Cable Ports | 4 Entry Cable Port for 6-8mm Diameter Cable | Protection Grade | IP65 |
| Adapter Types | FC / Sc / St / LC | Color | White / Black / Customized |
| Dimension | 385*325*117mm | Transport Package | Carton |
| Origin | China | Packing information | 12pcs per carton |
| Production name | Optical Fiber Distribution Box | Certification | CE,ISO,RoHS |
| Capacity | 48F | Material | ABS |
| Adapter Port | Max.48 Sc Simplex Adapters | Application | Outdoor Aerial Hanged |
| Cable Ports | 4 Entry Cable Port for 6-8mm Diameter Cable | Protection Grade | IP65 |
| Adapter Types | FC / Sc / St / LC | Color | White / Black / Customized |
| Dimension | 385*325*117mm | Transport Package | Carton |
| Origin | China | Packing information | 12pcs per carton |
