Fiber Optic Pre-Terminated-All you need is here

Optical cable structure selection

MPO/MTP pre-terminated trunk cable: It integrates multiple MTP/MPO fiber jumpers, and is usually used for high-density wiring of internal buildings and building backbones with predictable cable distances.
MPO/MTP pre-terminated jumpers: It is made of MPO/MTP fiber connectors and multi-core fiber cables. There are types such as MPO-MPO and MPO-LC. It can integrate 2 to 32 cores and is mostly used in high-density integrated wiring environments, such as connections between internal devices in data centers.
MPO/MTP branch fan-out cable: It uses high-density multi-core optical cables and MPO/MTP connectors to achieve branching from MPO/MTP to common connectors such as LC, SC, FC, ST, MTRJ through the intermediate splitter structure. It is suitable for connecting the output end of the trunk cable to the distribution frame system and other scenarios.

Fiber type selection

Single-mode pre-terminated fiber: single-mode fiber is used, suitable for long-distance, high-speed data transmission, such as telecommunications backbone networks, long-distance communications and other scenarios.
Multimode pre-terminated fiber: multi-mode fiber is used, often used in short-distance, high-bandwidth communication applications, such as data center internal, enterprise campus network and other environments.

Connector type selection

LC pre-terminated fiber: equipped with LC connector, often used to connect SFP optical module and pre-terminated module box, with small size and high density.
SC pre-terminated fiber: SC connector is used as the terminal, often used in fiber optic transceiver and GBIC module, is a card-type square (large square mouth) connector, easy to operate.
FC pre-terminated fiber: FC connector is used, that is, a circular threaded connector, often used in fiber optic patch panels, with good sealing and stability.
ST pre-terminated fiber: ST connector is a circular bayonet type, also commonly used in fiber optic patch panels, more common in some traditional fiber optic networks.

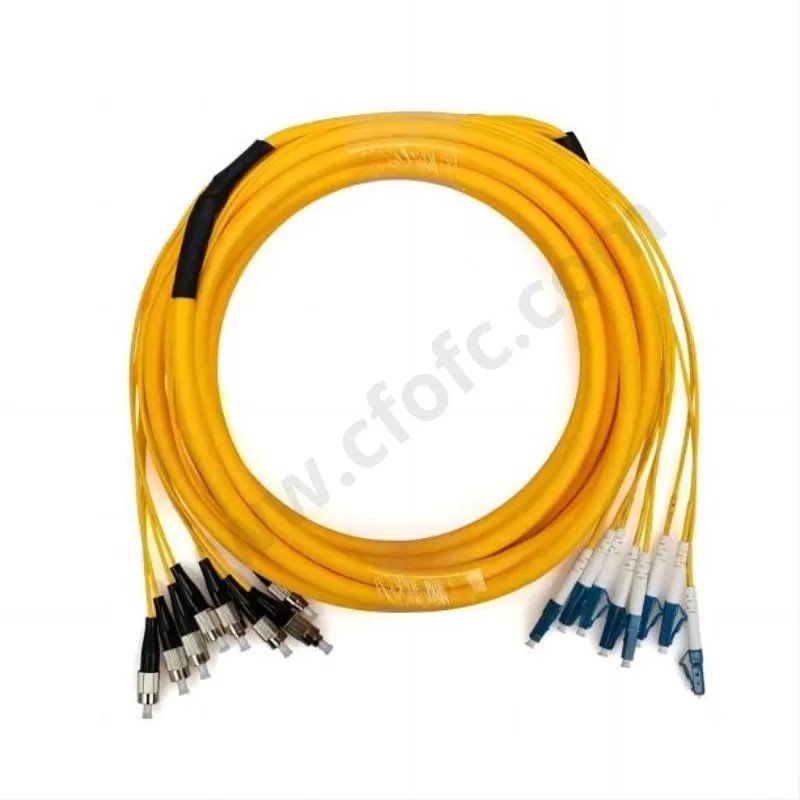

Fireproof FC to LC Pre-terminated 12 Fibers Patchcord PVC LSZH

With breakout number ranging from 8 to 144. Available connector types include MPO, SC, LC, ST, FC and MU, breakout types bare fiber, 0.9mm, 1.2mm, 2.0mm, 3.0mm, etc.

Inquiry

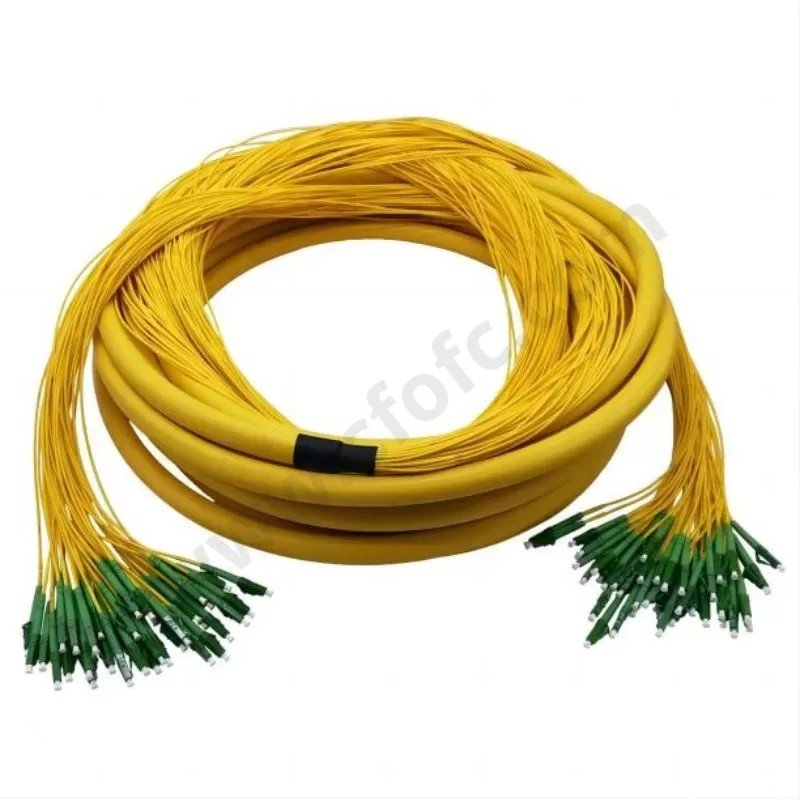

LC/APC 12/24 Fibers Pre-terminated Fiber patch cord

With breakout number ranging from 8 to 144. Available connector types include MPO, SC, LC, ST, FC and MU, breakout types bare fiber, 0.9mm, 1.2mm, 2.0mm, 3.0mm, etc.

Inquiry

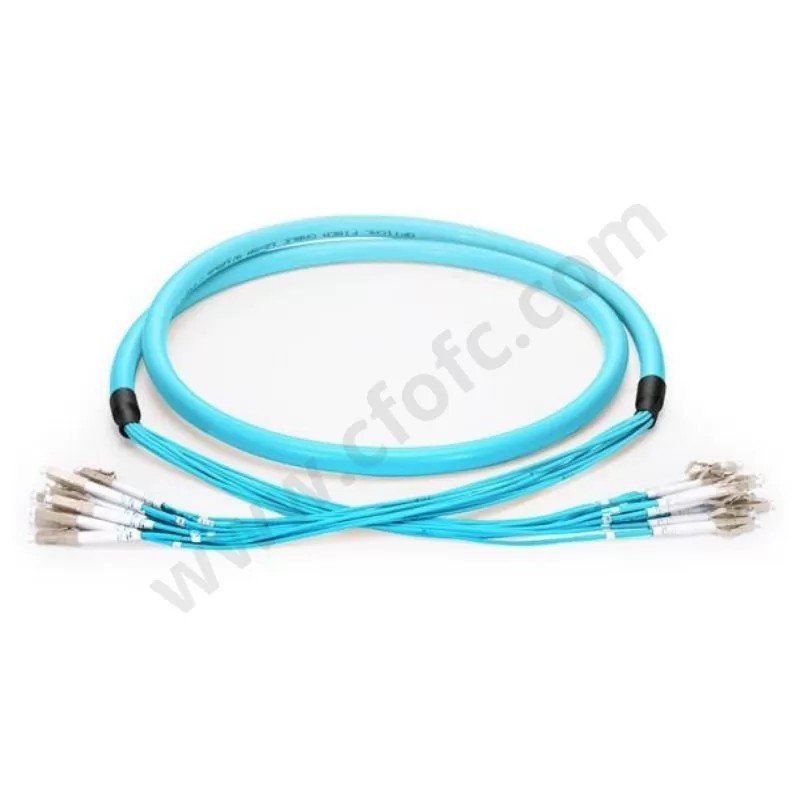

OM3 LC Pre-terminated Fan-out Fiber Patchcords LSZH Aqua

With breakout number ranging from 8 to 144. Available connector types include MPO, SC, LC, ST, FC and MU, breakout types bare fiber, 0.9mm, 1.2mm, 2.0mm, 3.0mm, etc.

Inquiry

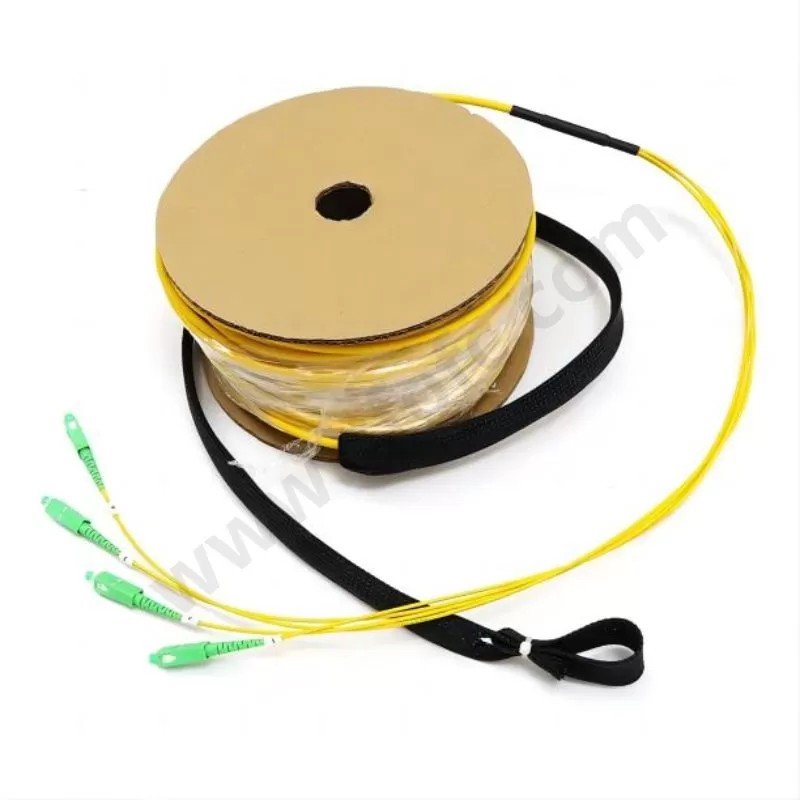

Fireproof SC 4/18/12 Fibers Pre-terminated Break-out Fiber Patchcords With Pulling Eye

With breakout number ranging from 8 to 144. Available connector types include MPO, SC, LC, ST, FC and MU, breakout types bare fiber, 0.9mm, 1.2mm, 2.0mm, 3.0mm, etc.

Inquiry
